Product Details
＋

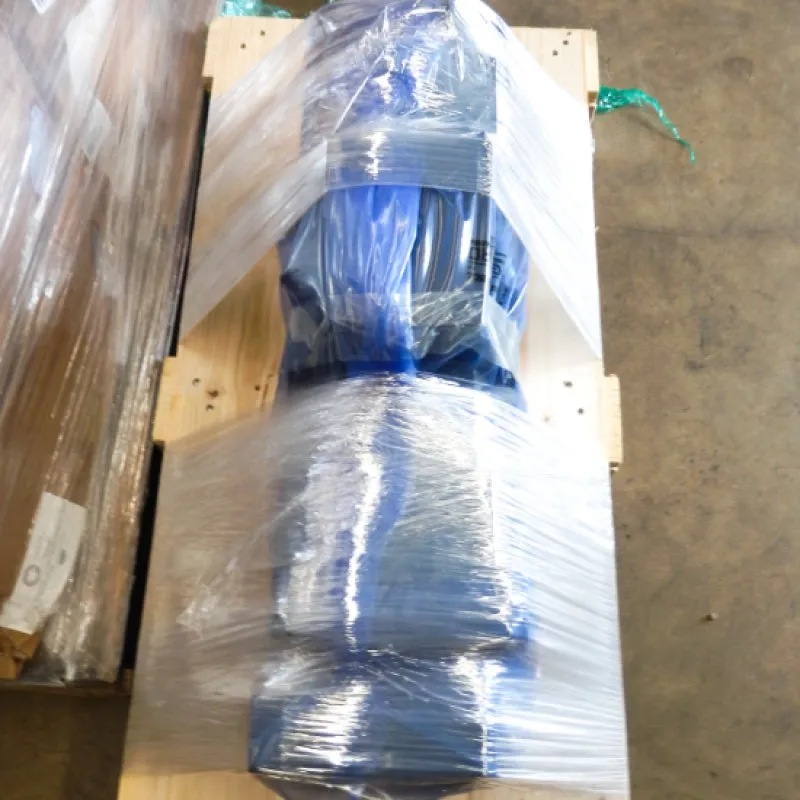

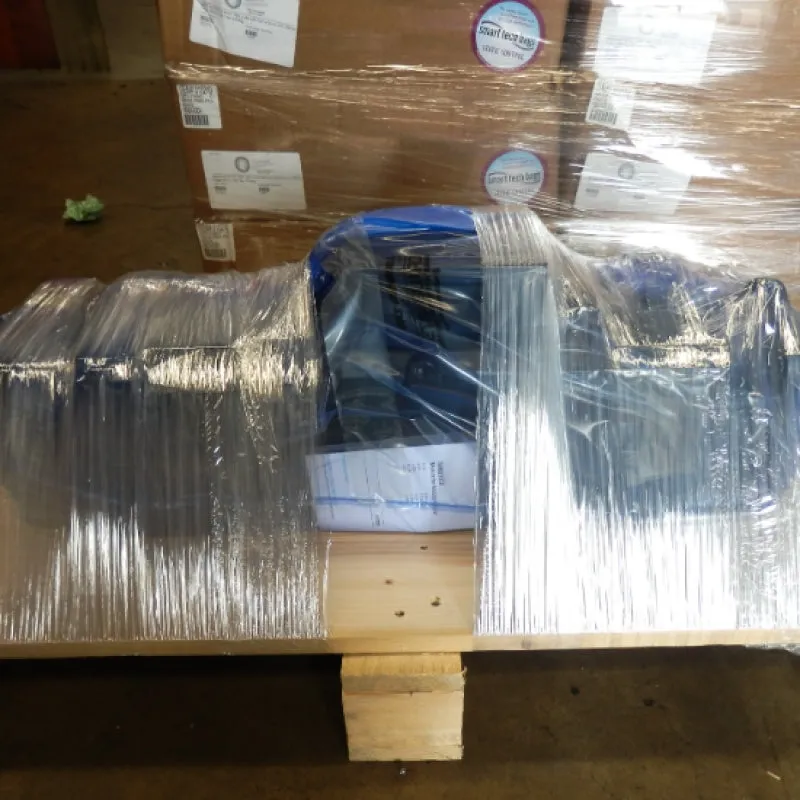

This is a Siemens Compact Asynchronous Motor Part number 1PH8103-1SF02-3LA1. This item comes as pictured and is shipped on a pallet.
Specifications:
- Motor type: Squirrel cage asynchronous motor
- Shaft height: 100
- Cooling: Forced ventilation DE -> NDE
- Vibration severity grade: SPECIAL/B
- Shaft and flange accuracy: SPECIAL
- Degree of protection: IP55
- Design acc. to Code I IM B5 (IM V1, IM V3)
- Temperature monitoringL Pt1000 temperature sensor in the stator winding
- Color: Standard (Anthracite RAL 7016)
- Type of the bearing: Performance
- Shaft extension: Smooth hollow shaft
- Encoder system: Incremental encoder 19 bit without commutation position (encoder IN19DQ)
- Thermal time constant: 20 min
- Moment of inertia: 172 kgcm²
- Weight (approx.): 51 kg
- Type of electrical connection: Terminal box
- Position of the connection: NDE top
- Power connection: right
- Signal connection: DE
- Terminal box designation: gk813
- Airflow, min.: 0.04 m³/s
- Sound pressure level LpA(1m) motor external fan operation 50 HZ rated load, tolerance 3dB: 70 dB
- Air discharge: axial
- Pressure drop: 110 Pa
