Description

The Tomahawk 30 Air plasma cutting system arrives ready to go for fast and precise cutting. With its built-in air compressor, this machine is perfect for anyone who needs a reliable, portable cutting tool. With the Tomahawk 30 Air, forget the grinder – simply pick up the torch and cut in seconds. Plus, it also has external air capabilities, so you can use it with an external compressor if you need to. So whether you’re working in your garage or out in the field, the Tomahawk 30 Air is the perfect tool for the job.

Features

• Ultimate Portability - Internal air compressor enables operation in environments where external compressed air is not available
• Continuous output control - Focus the arc for different material thickness
• Touch start system - Reliable plasma arc initiation without high frequency
• Rapid arc Restrike - Fast cutting through gaps, even expanded metal
• Front panel purge control - makes it easy to set the air flow rate without initiating the plasma arc
• Cool operation, long consumable life - Numerous torch consumables for a wide range of hand-held applications
• Added safety - Lincoln's parts-in-place system detects correct installation of consumables and torch
• Engine drive compatible - Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations

Consumable Wear

• It is normal for the electrode and nozzle to wear during operation.
• Electrodes should typically be replaced when erosion reaches 0.025 in (0.65mm)
• A green erratic arc will indicate end of electrode life. The electrode should be immediately replaced.
• It is recommended that the electrode and Nozzle 30A be replaced as a complete set.

Recommended Engine Drives

The Tomahawk 30 Air can be operated on engined driven generators as long as the 230 volt auxiliary meets the following conditions.

• The AC Waveform peak voltage is below 400 volts
• The AC Waveform frequency is between 55 and 65 Hz
• The RMA voltage of the AC waveform is always greater than 208VAC

Machine Examples:

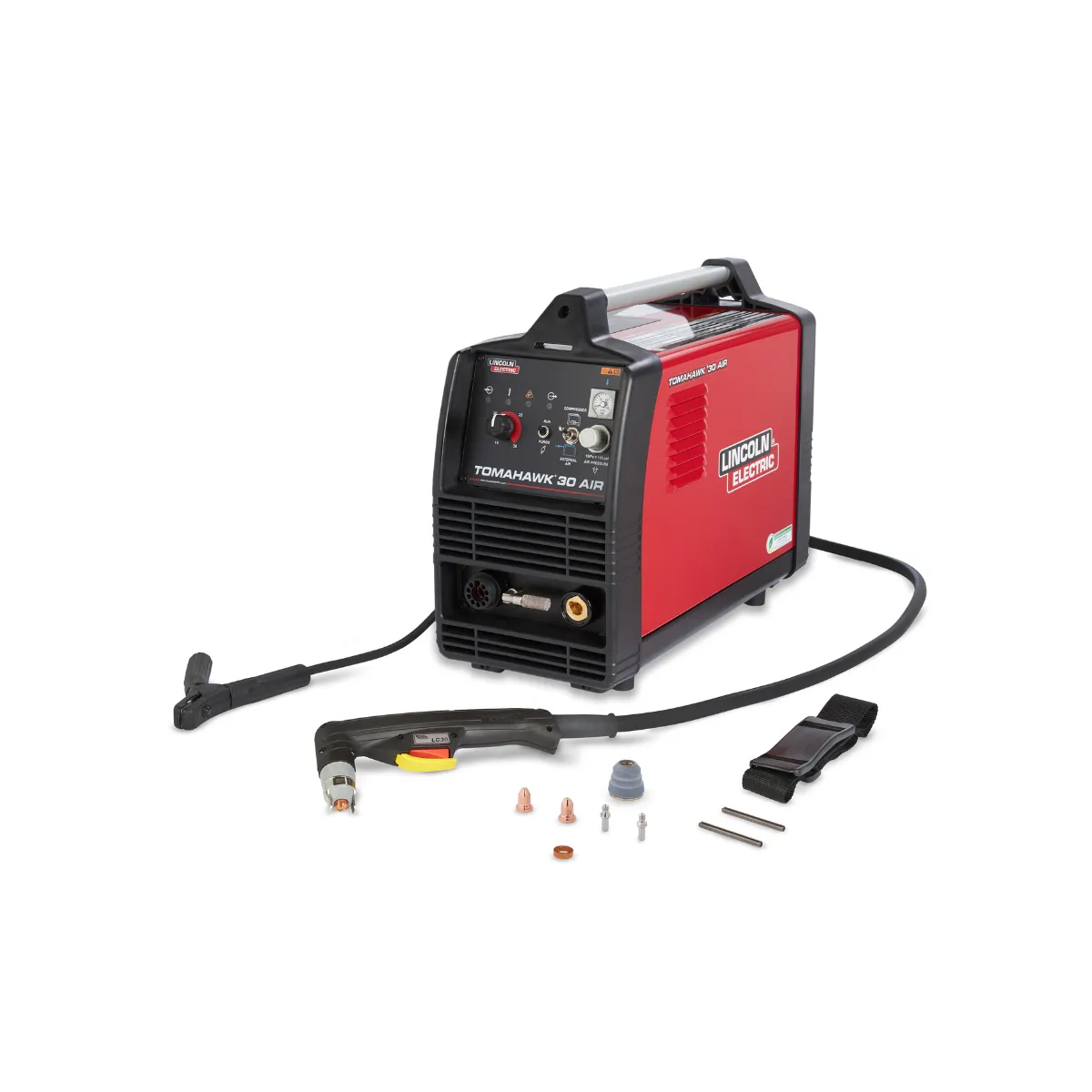

Included with Product

• Lincoln Tomahawk 30 AIR Plasma Cutter
• Internal air compressor (external air connection also standard)
• LC30 PlasmaTorch with 10 ft. (3 m) cable
• Air regulator and pressure gauge
• Internal water separator
• Work clamp and cable
• Spare consumables
• Shoulder strap
• Input power cord

Specifications

Click the image below to view the full spec sheet.

Review Video
