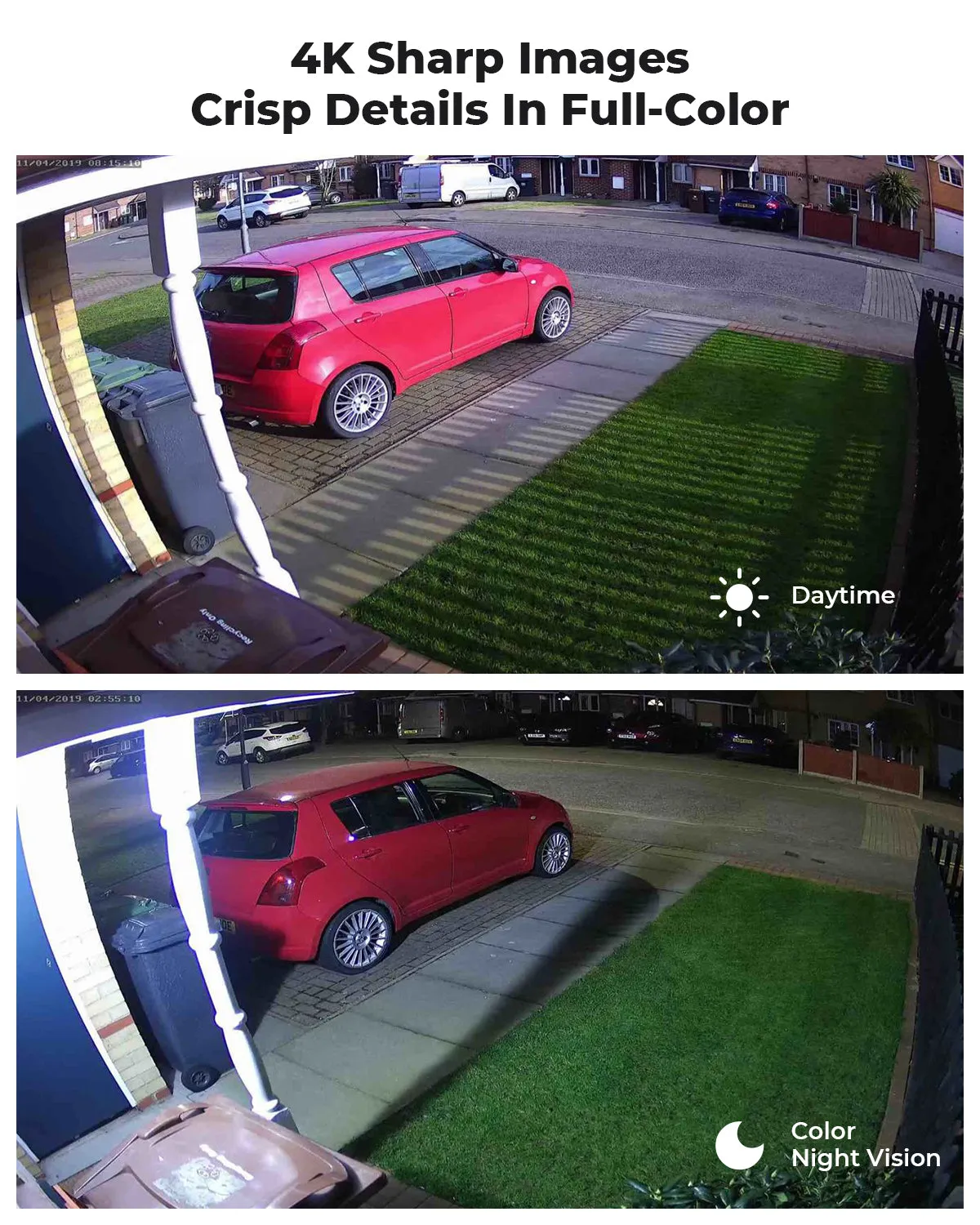

4K Ultra HD 24/7 Full Color images
Contains especially powerful SONY IMX415 image sensor which produces full-color video In regular nighttimeconditions, see every details including human face, vehicles during night.
Customizable Motion Detection Events
You can create a variety of motion detection settings for the camera, including Person detection, line crossing detection, intrusion detection and area-specific detection.
Avoid 99.5% False Alarm
AI Person Detection is Different from traditional PIR or motion detection. Built-in updated sensor will only detect human movement, won't be triggered by leaves, animals or insects.
Easy Plug-and-Play Connection
With a Plug-and-Play reliable connection, this PoE camera uses a single Ethernet cable to transmit both data and power.
Listen to what's happening around
Built-in microphone let you hear the sound around the camera,records what people say, make it authentic with sound video recording.
More video, Less storage
H.VIEW H.265 compression reduces storage and bandwidth by up to 50% over traditional H.264 compression.
24/7 Monitoring and Recording, NVR Never Sleeps
This 8CH PoE NVR security camera system supports simultaneous live feed and 24/7 recording for all cameras. When something abnormal is detected, you'll get notified instantly. You will never miss anything.
Ready for Anywhere, Indoor and Outdoor
Outdoor and Indoor IP Camera with an IP66 waterproof rating. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

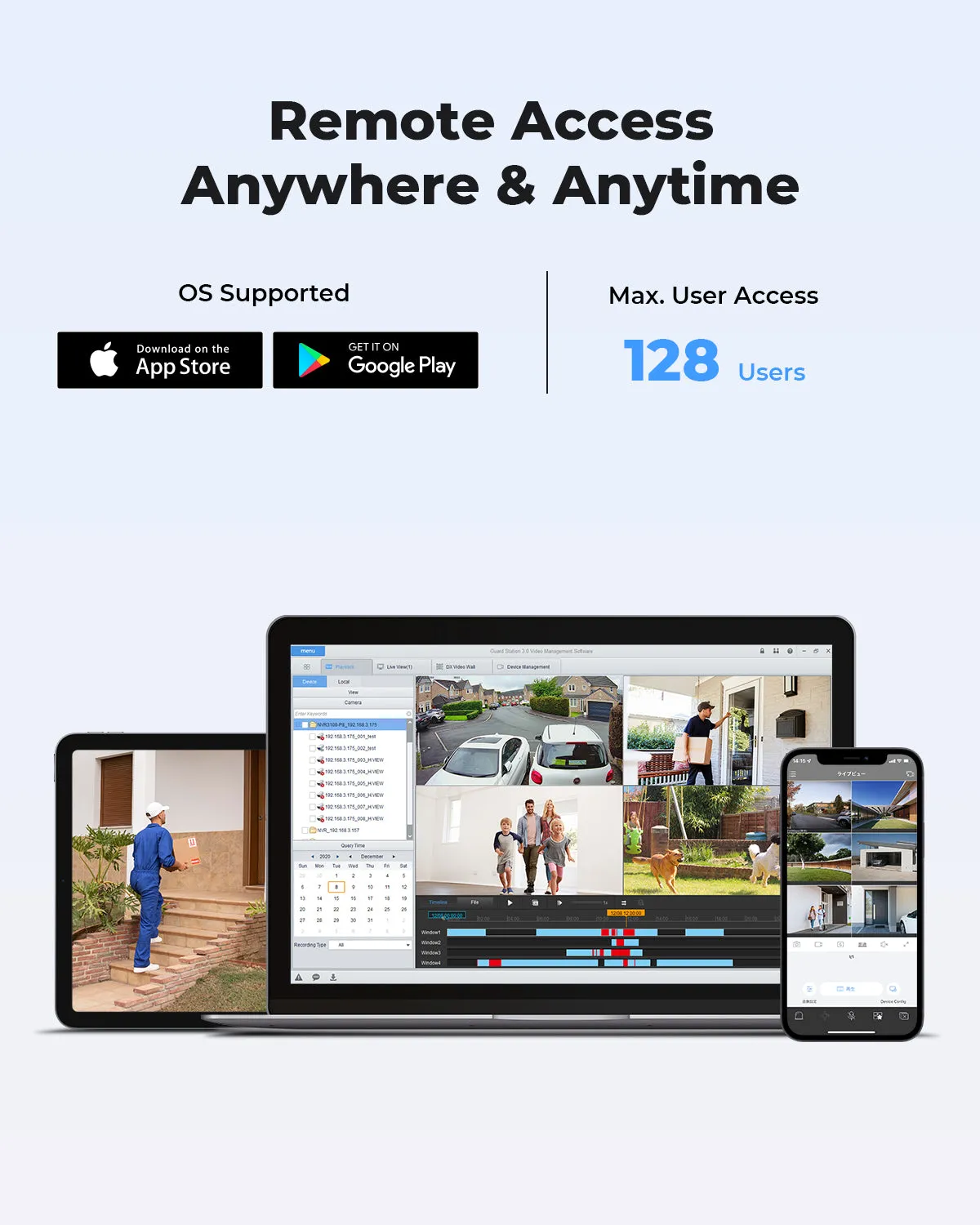

Remote Access Anytime, Anywhere
Support multiple online viewing, No matter where you are, you can Through mobile APP remotely access the camera to see.
Specification
-

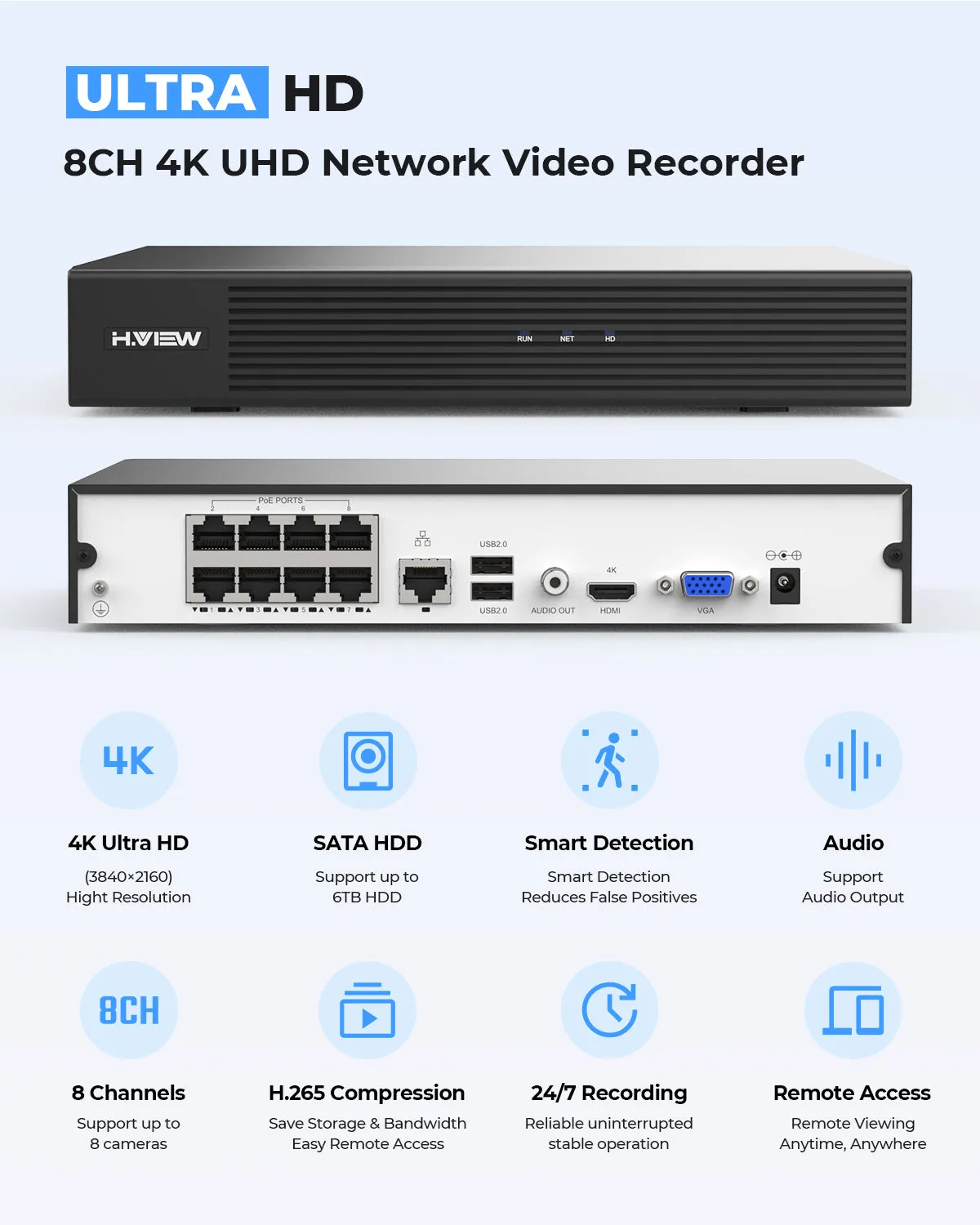

NVR Specifications
Model NVR3108-8P Video/Audio Input IP Video Input 8-ch Network Incoming Bandwidth 50Mbps Outgoing Bandwidth 40Mbps Remote Users 128 Protocols P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output HDMI/VGA Output HDMI:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzRecording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Synchronous Playback 8-ch Corridor Mode Screen 3/4/5/7/9 Decoding Decoding format Ultra 265/H.265/H.264 Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 1x8MP@30,1 x 6MP@30,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 Hard Disk SATA 1 SATA interface Capacity up to 10TB for each disk External Interface Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel: 2 x USB2.0 Supported Standard IEEE 802.3at, IEEE 802.3af External Interface Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface Max Power Max 30W for single port
Max 75W in totalSupported Standard IEEE 802.3at, IEEE 802.3af General Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)Working Environment -10°C ~ 55°C ( 14°F ~ 131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8") Weight (without HDD) 1.1kg (2.43 lb) Camera Specifications

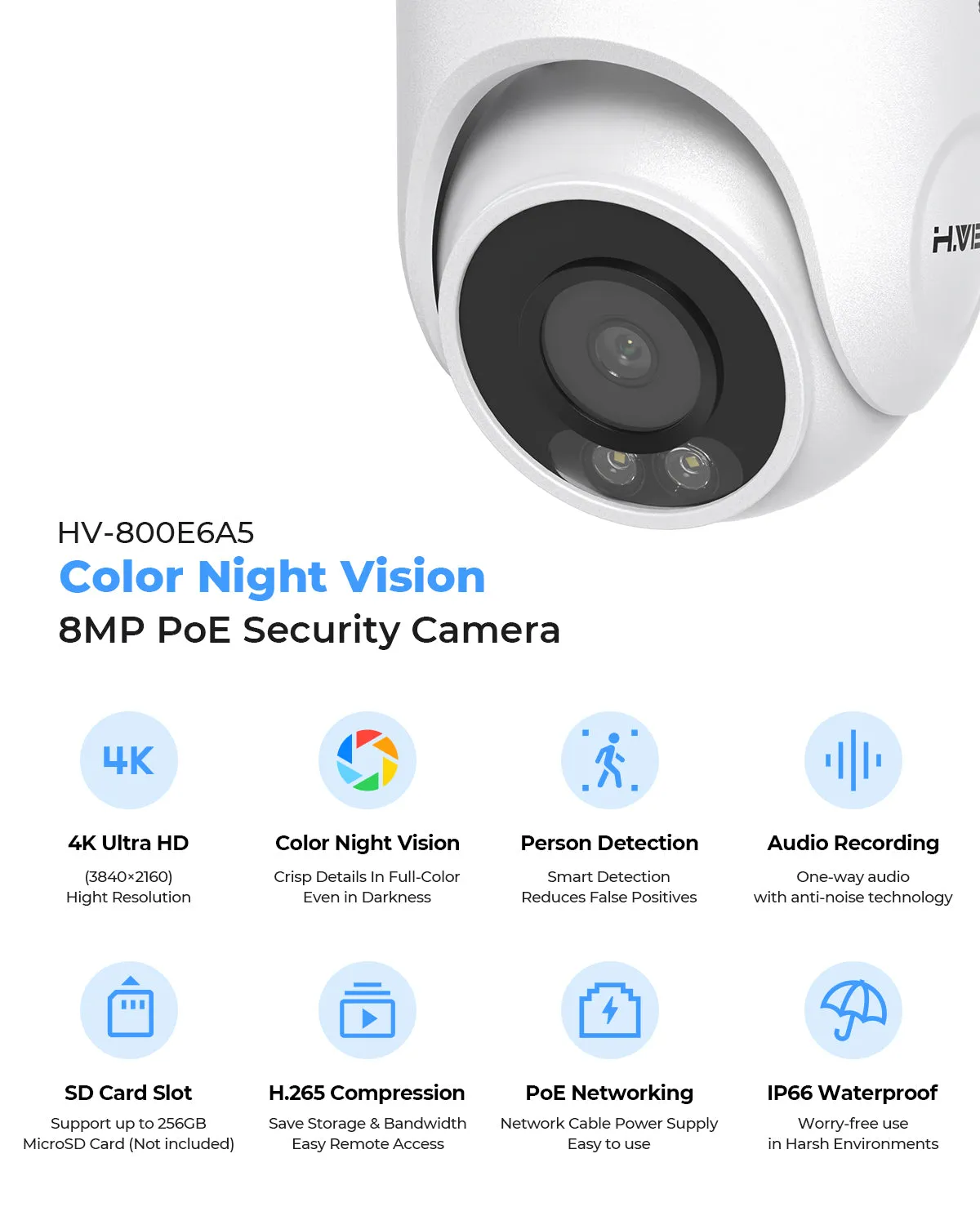

Model HV-800E6A5 Image Sensor 1/2.7″, 8.0 megapixel, progressive scan, CMOS
Smart Features Motion Detection, Intrusion Detection， Human Body Detection Lens [email protected] 112° of horizontal coverage; Shutter Auto/Manual, 1 ~ 1/50000s Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON) Defog Digital Defog WDR 120dB LEDs Number 2 LED Distance Up to 30m (98ft) Video
Video Compression
H.265, H.264, MJPEG Camera Streams Main Stream: up to 8MP (3840×2160): Max. 20 fps,
Sub Stream: up to 720p (1280x70): Max. 20 fps;
Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 20 fpsMax. Image Resolution 3840×2160; 8 Megapixel Frame Rate 8MP (3840×2160)/15 fps; 6MP(3042× 2048 )/20fps; 5MP (2048×1520)/20 fps; 4MP(2592*1520)/20fps; 1080P (1920*1080)/20 fps Video Bit Rate 256 Kbps~16 Mbps OSD Support Wide Dynamic Range Digital WDR Waterproof Rated
IP66 Rated
Privacy Mask Up to 4 areas ROI Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/manual Image 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p Digital noise reduction 2D/3D DNR Smart Illumination Support Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N\A HLC Support WDR Support BLC Support HDR Support AUDIO Audio Compression ACC;G.711U;G.711A;G726 Suppression Supported Audio bit rate 8Kbps/16Kbps Storage Edge Storage Micro SD, up to 256GB Network Storage ANR, NAS(NFS),FTP Network

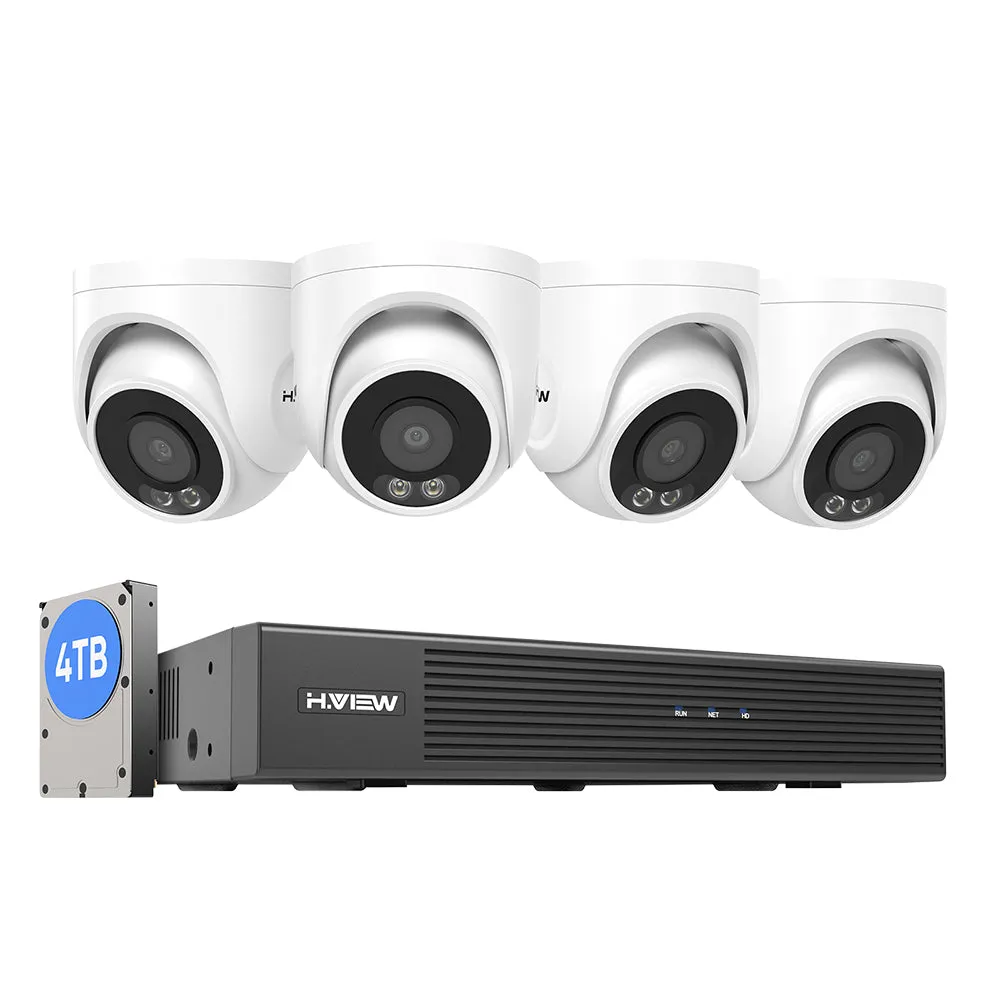

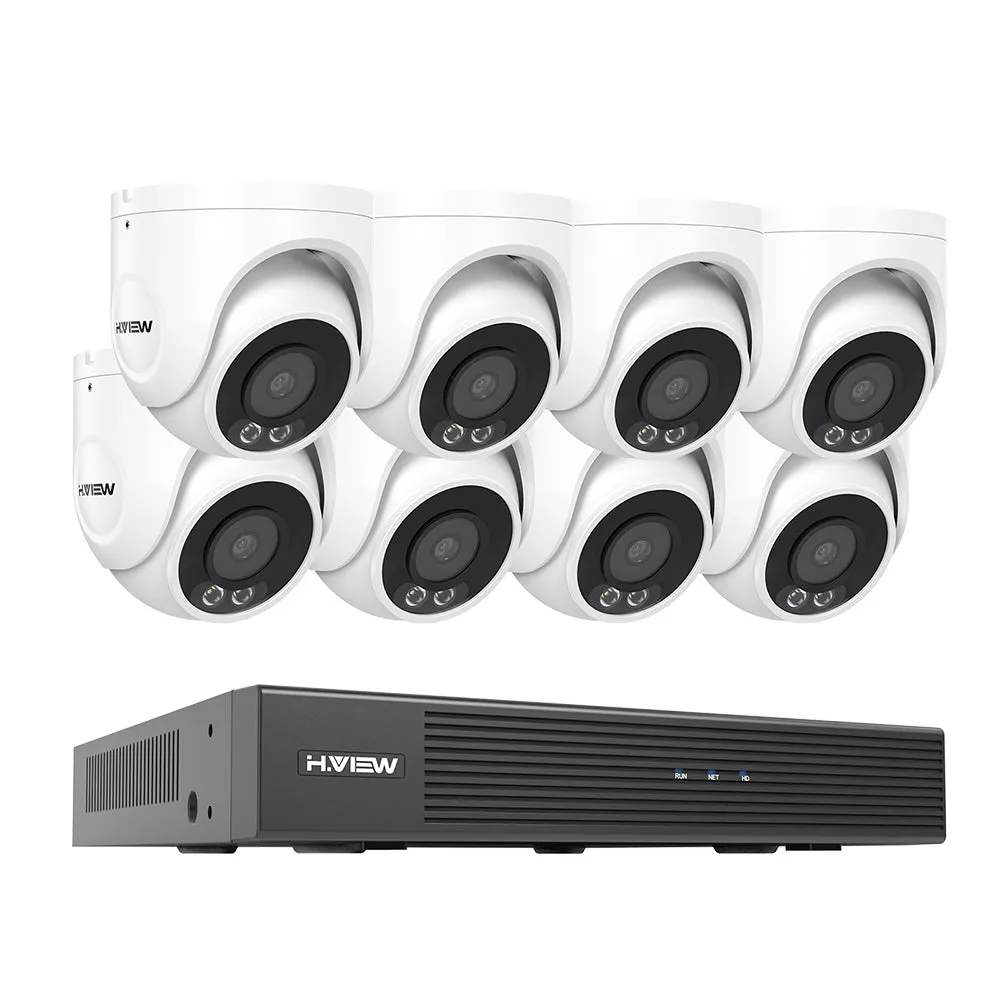

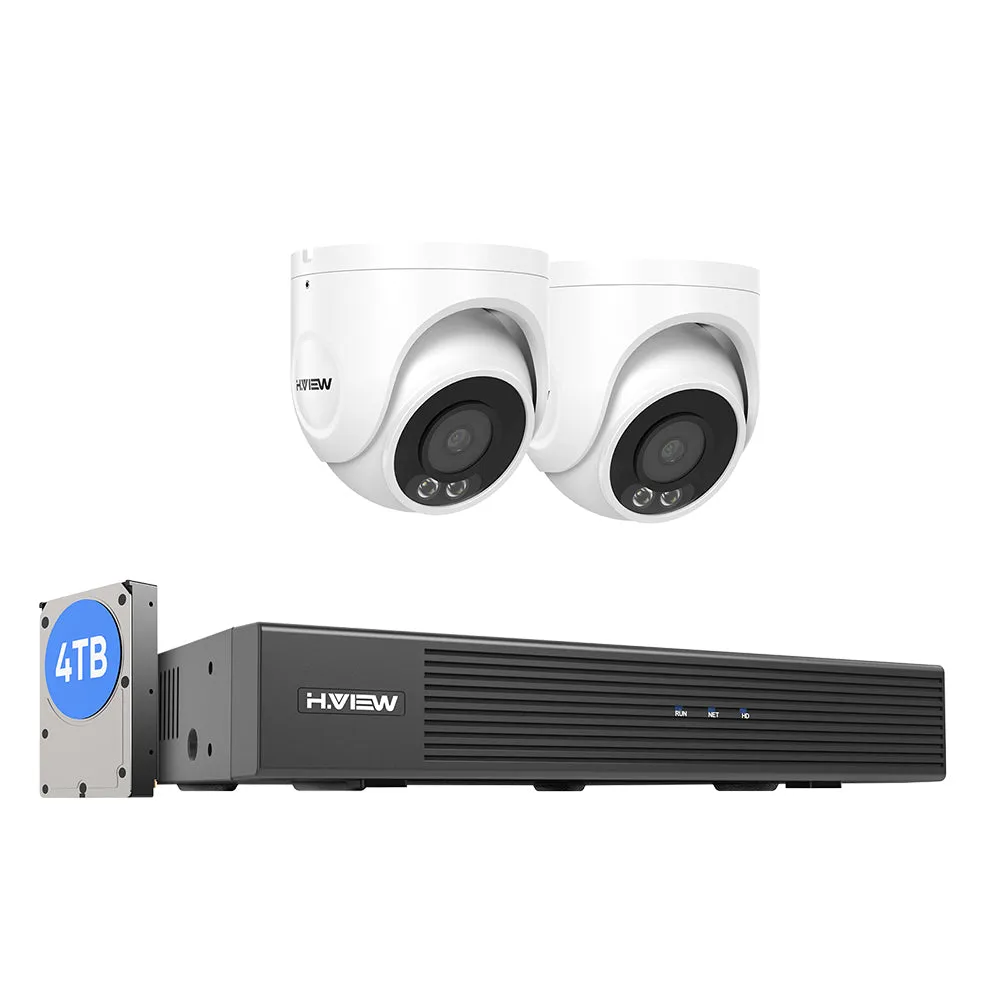

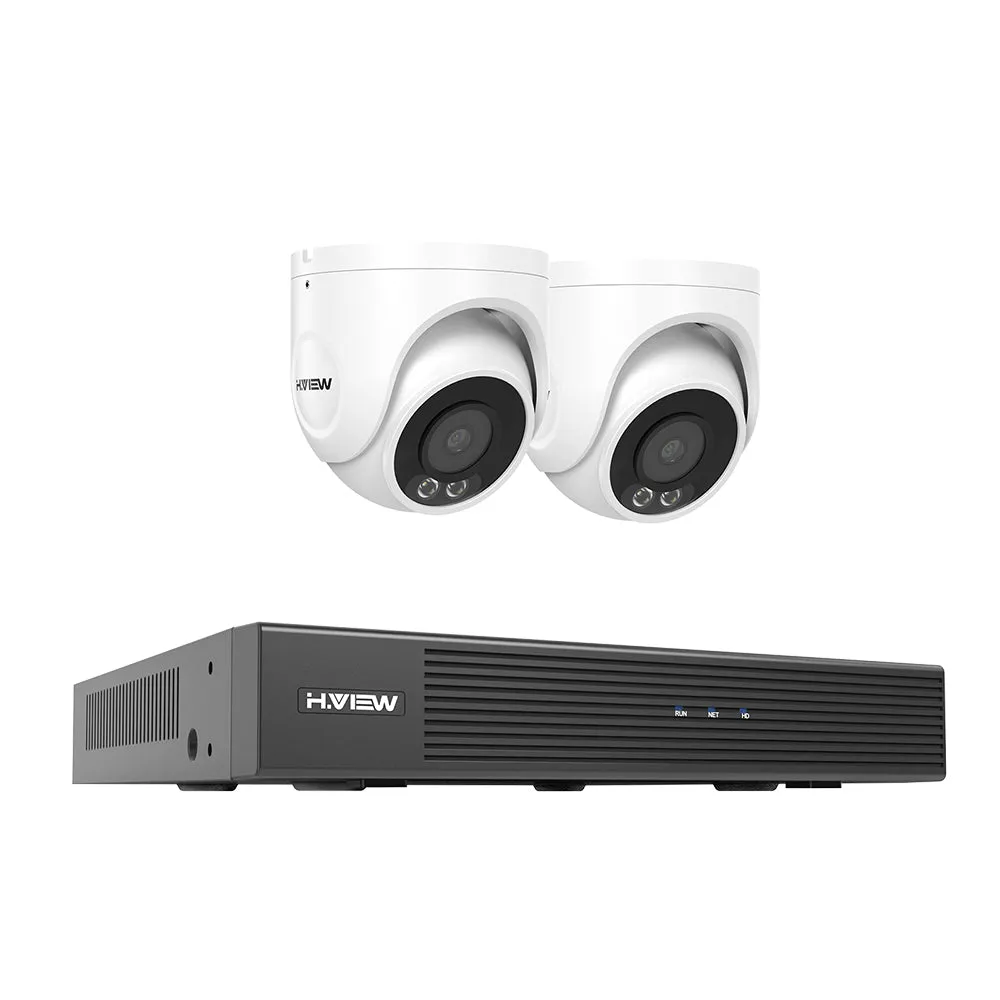

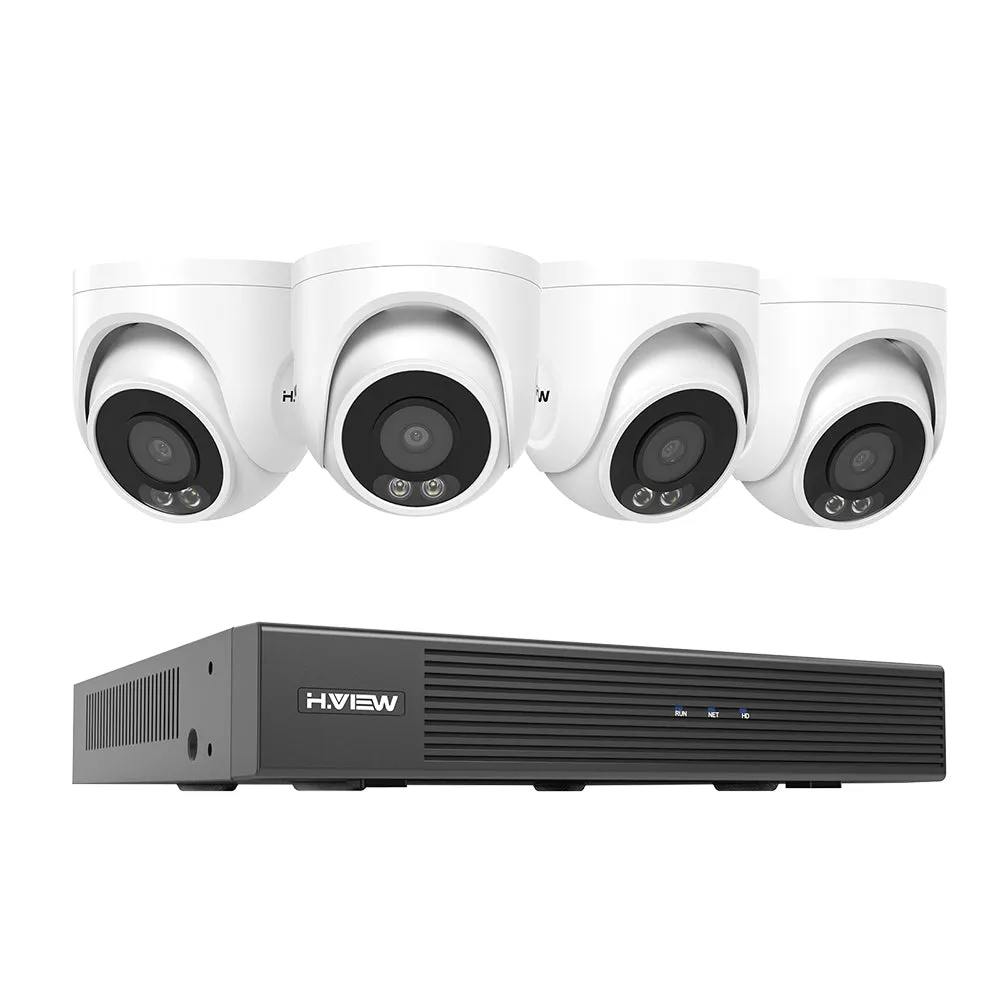

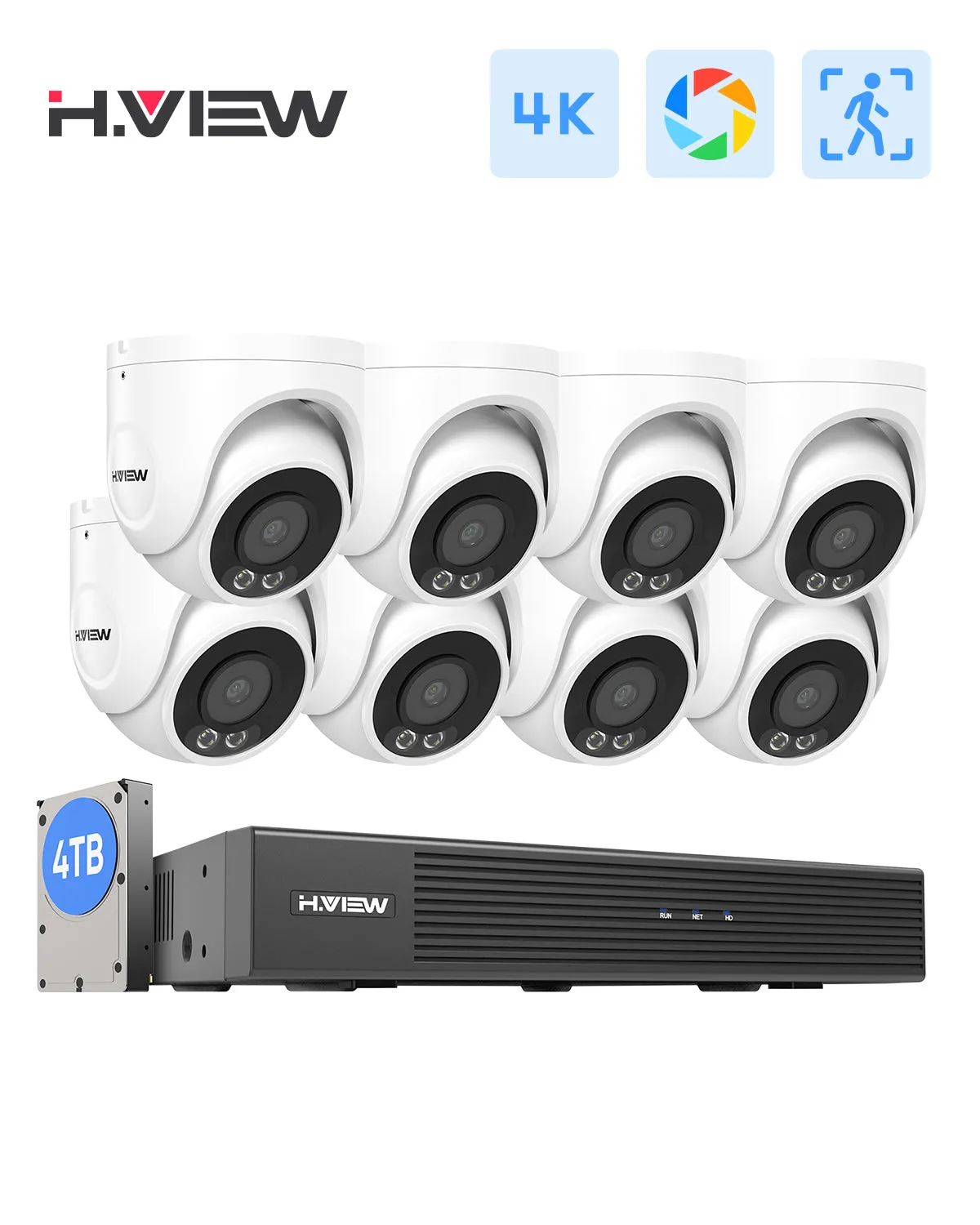

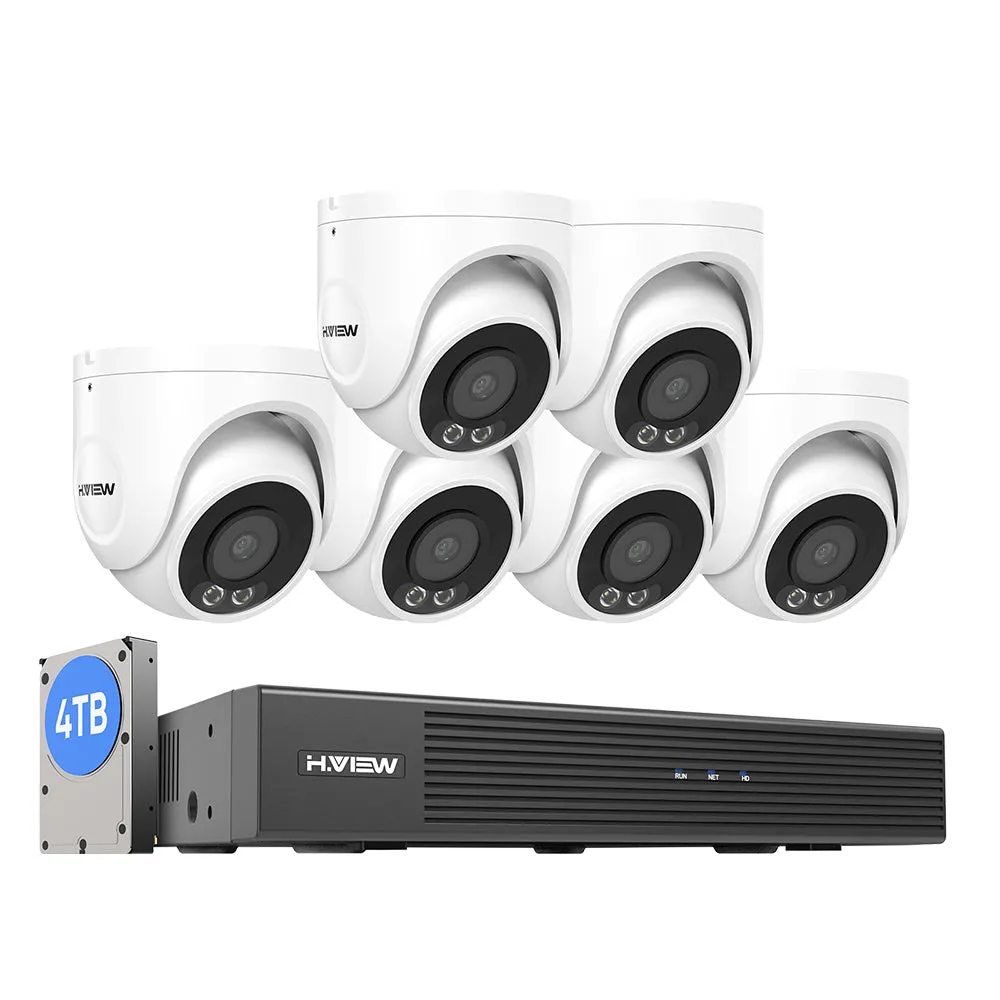

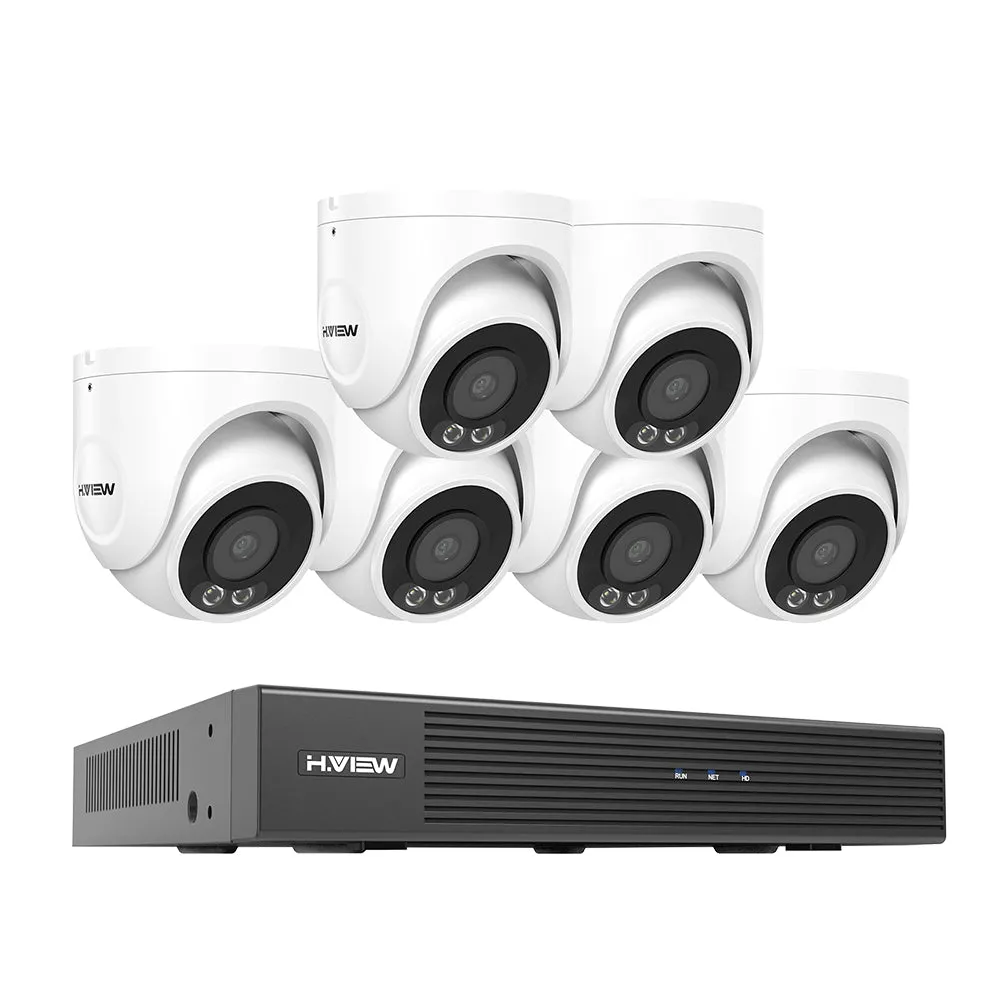

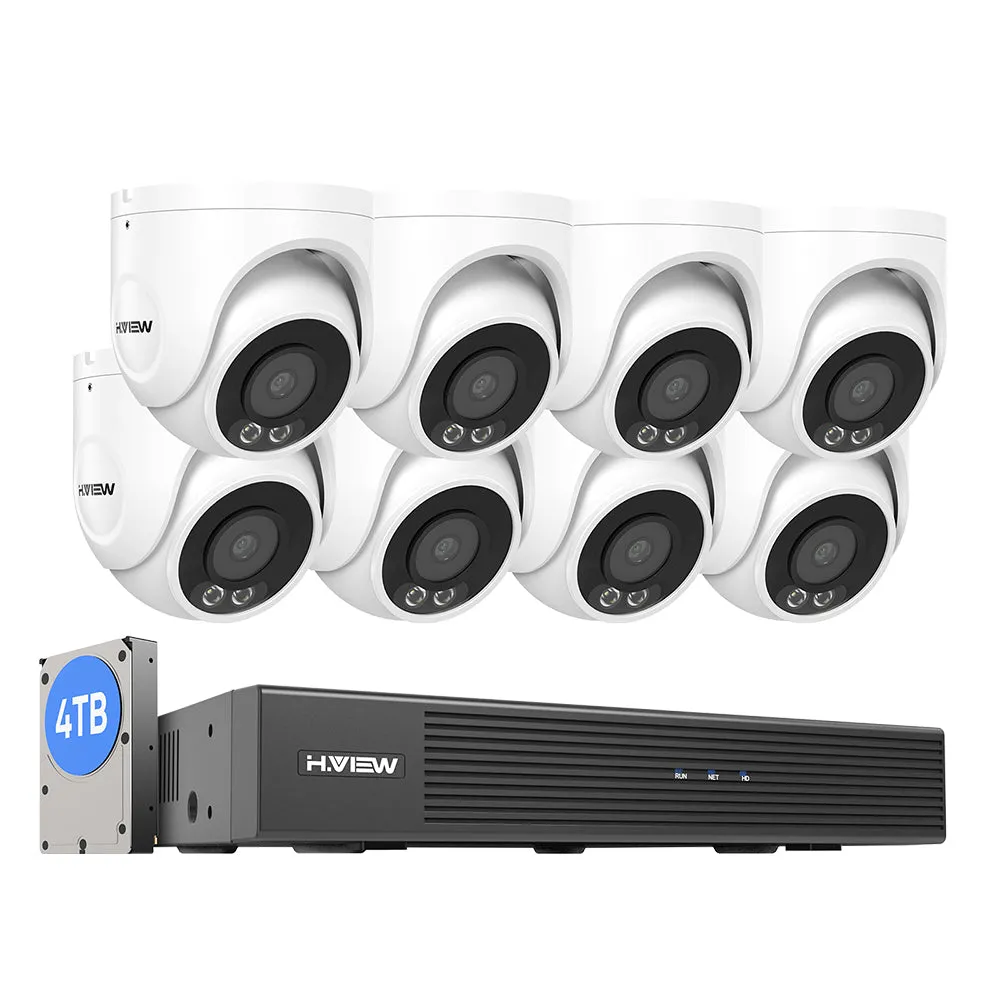

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP Compatible Integration ONVIF (Profile S, Profile T),HKvision、Dahua、NETIP(XM),API cms SmartClient ;EZPlayer、IPC Manager,Blue Iris, iSpy, Synology Nas, Qnap Nas、Security Spy、VLC、Tin H.VIEW 8 Channels 4K 8MP PoE Security Camera System, Color Night Vision, Audio Recording, Person Detection, HVK8-800E6A5-8MP
$ 61.10
$ 47.00
