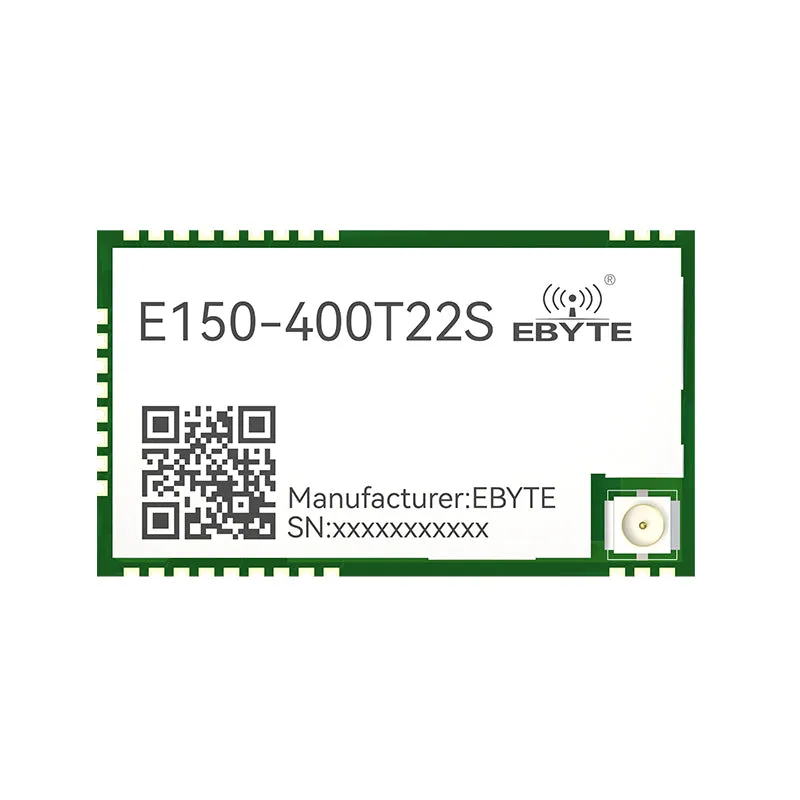

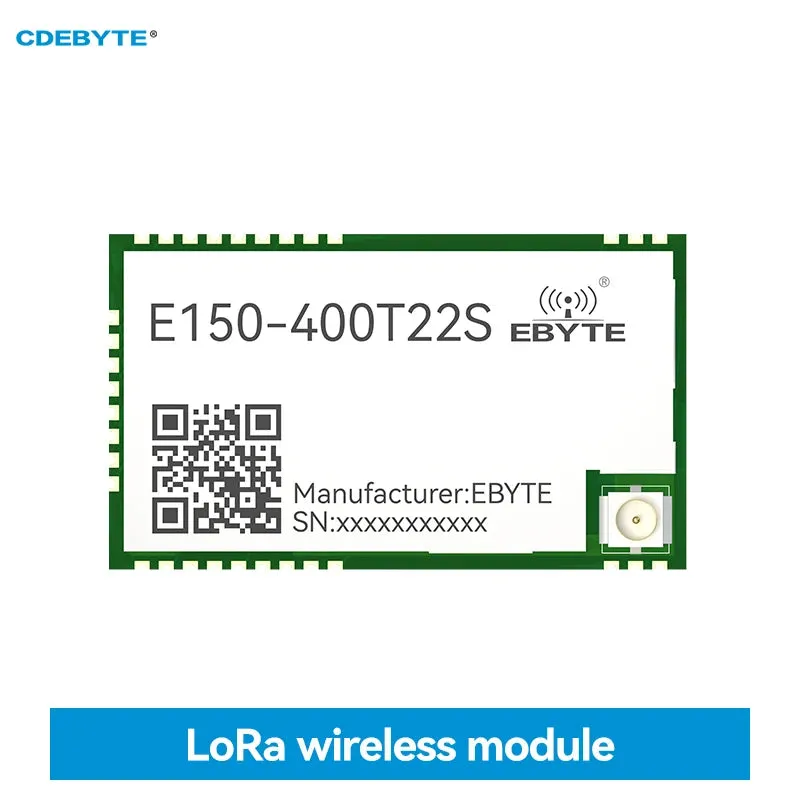

E150-400T22S Wireless serial port module Low power consumption ModBus transmission Wireless acquisition

[Operating frequency]:410.125~493.125MHz

[Transmitting power]: 22dBm

[Communication distance]:5.6km

[Product size]:31.0*18.0 mm

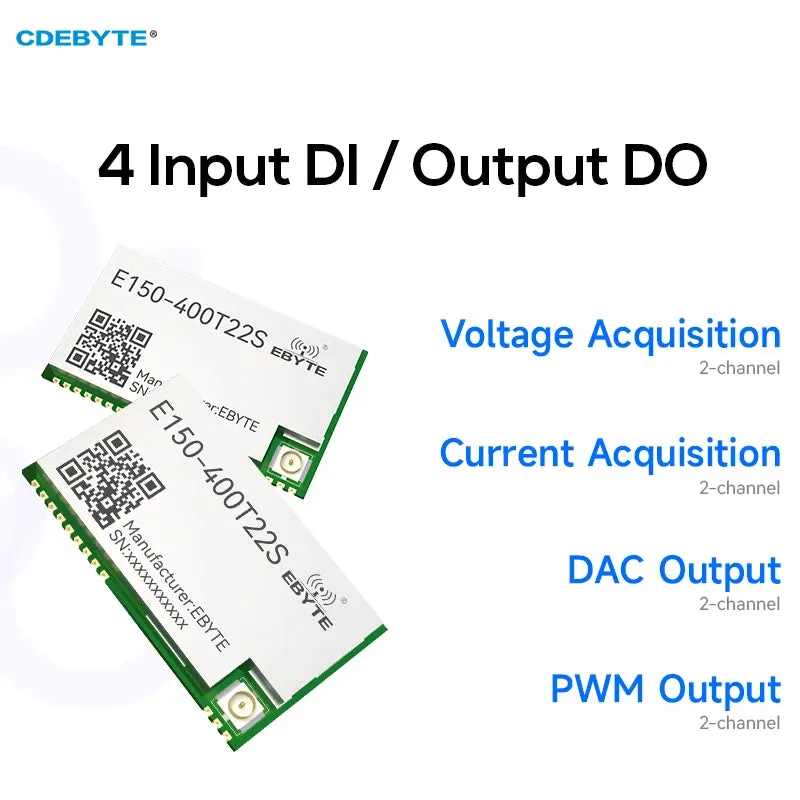

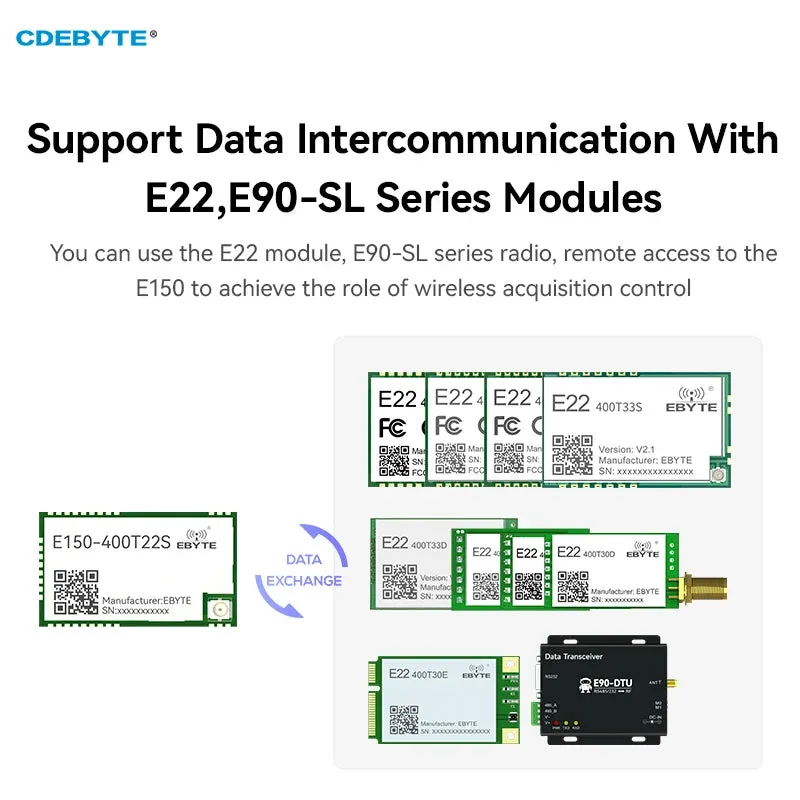

[Introduction]:E150-400T22S is a wireless serial port module (UART) based on LoRa radio frequency chip, which works in the frequency band of 410.125~493.125MHz (default 433.125MHz) and adopts LoRa spread spectrum technology. The wireless acquisition module integrates (switch input) DI, (switch output) DO, (digital-to-analog converter) ADC, (analog-to-digital converter) DAC, (pulse width modulation) PWM and (remote radio) LoRa functions. Users can send Modbus RTU commands through the serial port or remote LoRa networking equipment for control, and it also supports low power consumption mode. The wireless acquisition control module supports LoRa direct sequence spread spectrum technology function, has the advantages of longer communication distance, strong anti-interference ability, and strong confidentiality; industrial-grade passive crystal oscillator ensures its stability and consistency.

  • Main parameters performance Remark
    minimum value maximum value
    Supply voltage 0 V 5.5 V Exceeding 5.5V may permanently burn the module
    blocking power - 10  dBm Less likely to be burned if used at close range
    working temperature -40℃ 85℃ Industrial grade
    ADC maximum input voltage 0 V 7.5 V ADC1、ADC2、ADC3
    ADC maximum input circuit 0 mA 25 mA ADC4、ADC5
    ADC minimum operating voltage 2.5 V - Below this supply voltage, the ADC works abnormally
    DAC minimum operating voltage 3.3 V - Below this supply voltage, the DAC works abnormally
    RF minimum operating voltage 2.0 V - Below this supply voltage, the RF part stops working
    Main parameters performance Remark
    minimum value Typical value maximum value
    Working voltage (V) 3.3 5 5.5 ≥3.3V ensures normal function
    Communication level (V)
    3.3
    Using 5V TTL risks burning out
    Working temperature (℃) -40 - 85 Industrial grade design
    Working frequency band (MHz) 410.125 - 493.125 Support ISM frequency band
    Power consumption Emission current (mA) - 120 - Instantaneous power consumption
    Working current (mA) - 13 -

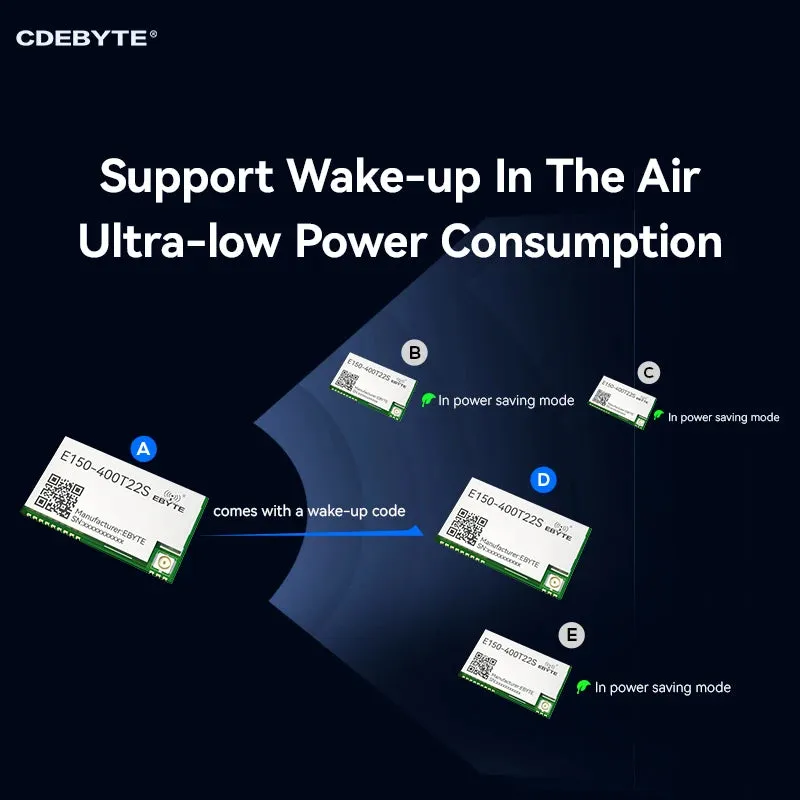

    Sleep current (μA) - 2 - Software shutdown
    Maximum transmit power (dBm) twenty one 21.5 twenty two User configurable
    Receiving sensitivity (dBm) -145 -147 -148 The air rate is 2.4kbps
    Over-the-air rate (bps) 2.4k 2.4k 62.5k User configurable
    ADC voltage range (V) 0 - 5 Exceeding this range may cause damage to the ADC
    ADC current range (mA) 0 - 20 Exceeding this range may cause damage to the ADC
    DAC pin drive capability (mA)

    - Weak, an external voltage follower may be required according to user needs.
    DO1/DO2 driving capacity (mA) - 3.3 5 Open-drain output, driving capability depends on the module’s internal and external pull-up resistor 1K
    DO3/DO4 driving capacity (mA) -35
    12 push-pull output
    DI input voltage (V) 0
    3.3 Exceeding this voltage may cause DI damage
    Main parameters describe Remark
    reference distance 5.6km In a clear and open environment, the antenna gain is 5dBi, the antenna height is 2.5 meters, and the air rate is 2.4kbps.
    ADC accuracy 12 bits Built-in external reference voltage and voltage follower, power supply voltage needs to be ≥3.0V, accuracy 1%
    DAC accuracy 8 bits Floating point value, power supply voltage needs to be ≥3.3V, accuracy 1%
    PWM accuracy Frequency step: 1 Hz Frequency range: 25Hz~65535Hz, accuracy 1%
    Duty cycle step: 1% Duty cycle range: 0~100%, accuracy 1%
    Subcontracting method 240 btye Maximum capacity of a single package, automatically subcontracted when exceeded
    cache capacity 1024 bty -
    Modulation method LoRa -
    Communication interface UART serial port 3.3V TTL level
    Packaging method SMD type -
    Interface mode UART Users can connect an external RS485 adapter chip, and the control pin has been lead out

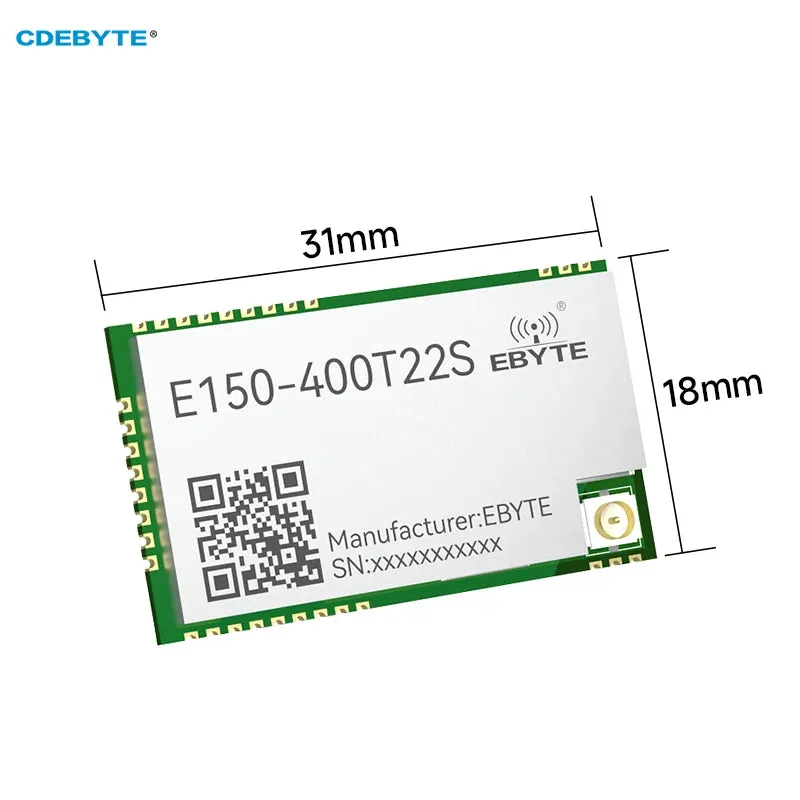

    Overall dimensions 31.0*18.0 ±0.2mm
    Antenna interface IPEX/stamp hole Characteristic impedance is about 50 ohms


EBYTE E150-400T22S PA LNA 5.6Km SMD Wireless Acquisition Control Module LoRa Spread Spectrum Module 22dBm 4DI 4DO ModBus
