Product Details
Features
  • Rolls up to 1/4” mild steel in 6-foot lengths.
  • Robust 4 hp motor runs on 220-volt 3-phase power.
  • Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
  • Direct linear piston movement for the lateral and forming rolls delivers even more power.
  • Industrial 1.5 hp hydraulic motor moves the lateral rolls.
  • 3 digital readouts give accurate roll locations for easy repeatability.
  • Operator control pedestal lets you conveniently manage all movements of the machine.
  • Welded steel plate frame keeps the machine rigid and helps prevent flex.
  • Covered by a 1-year parts warranty.
What's in The Box
  • PR-603-4 - Four Roll Plate Roll
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PR-603-4
Power 220V / 3-phase
Motor 4 hp
Working Length 78.74"
Forming Width 80"
Driven Rolls 2
Roll Speed 16 fpm. (5 mpm)
Upper Roll Dia. 7"
Roll Adjustment Back Hydraulic
Roll Diameter 7.4"
Side Roll Dia 5.9"
Roll Length 80.70"
Minimum Forming Dia 10.6"
Included Accesories Included Accesories
Dimensions (Inches) 138 x 44 x 52
Weight 7700 lbs

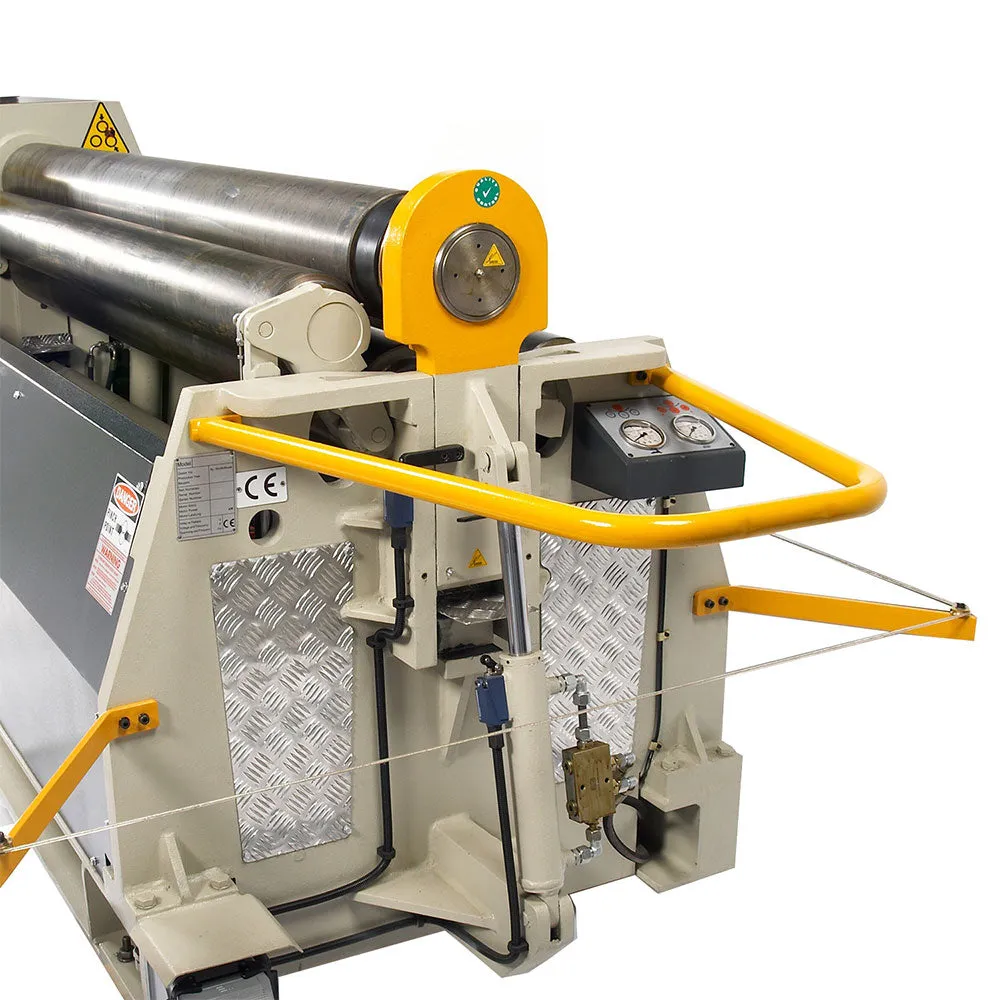

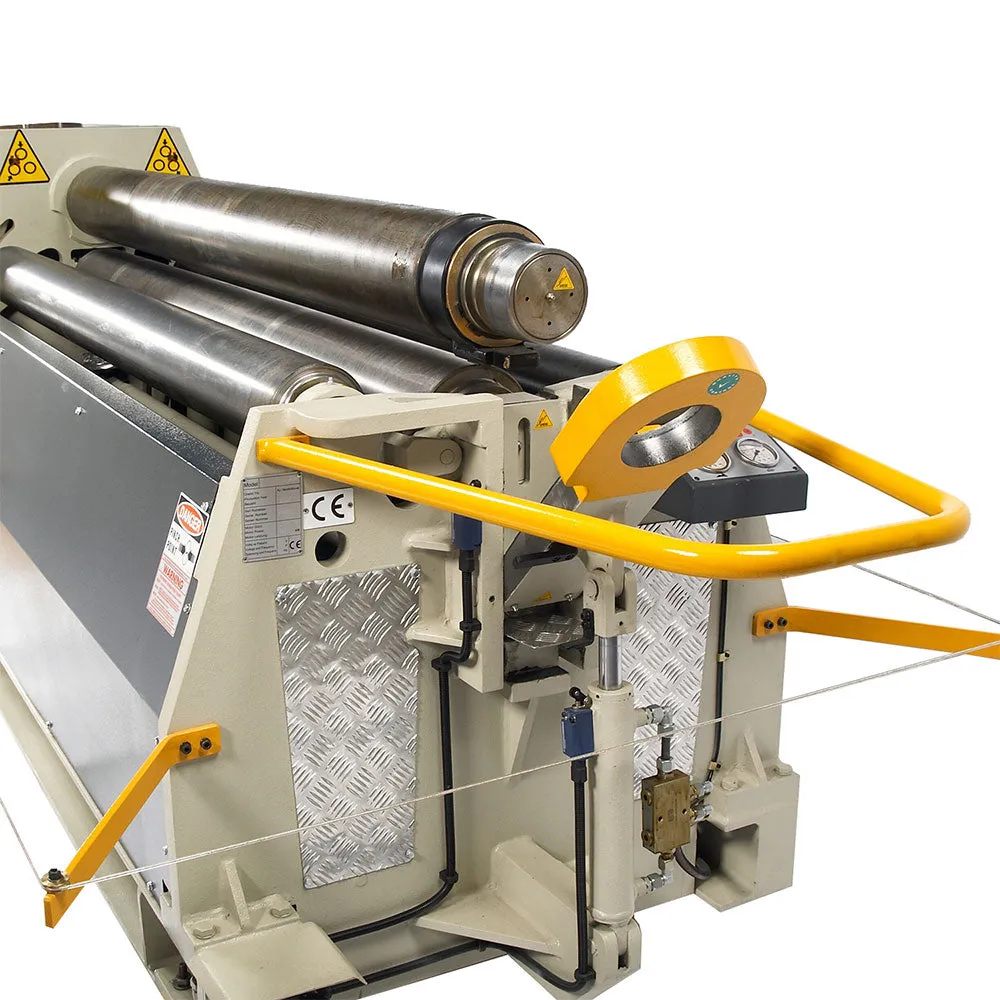

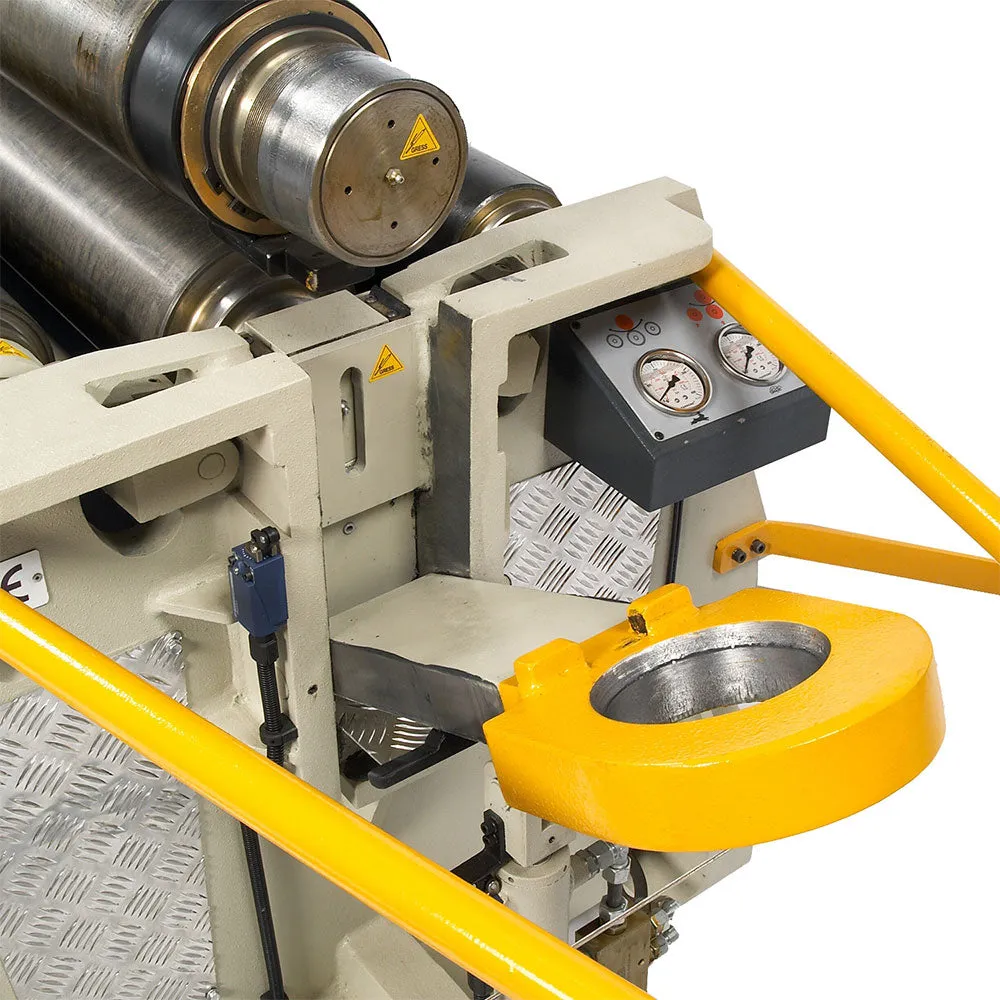

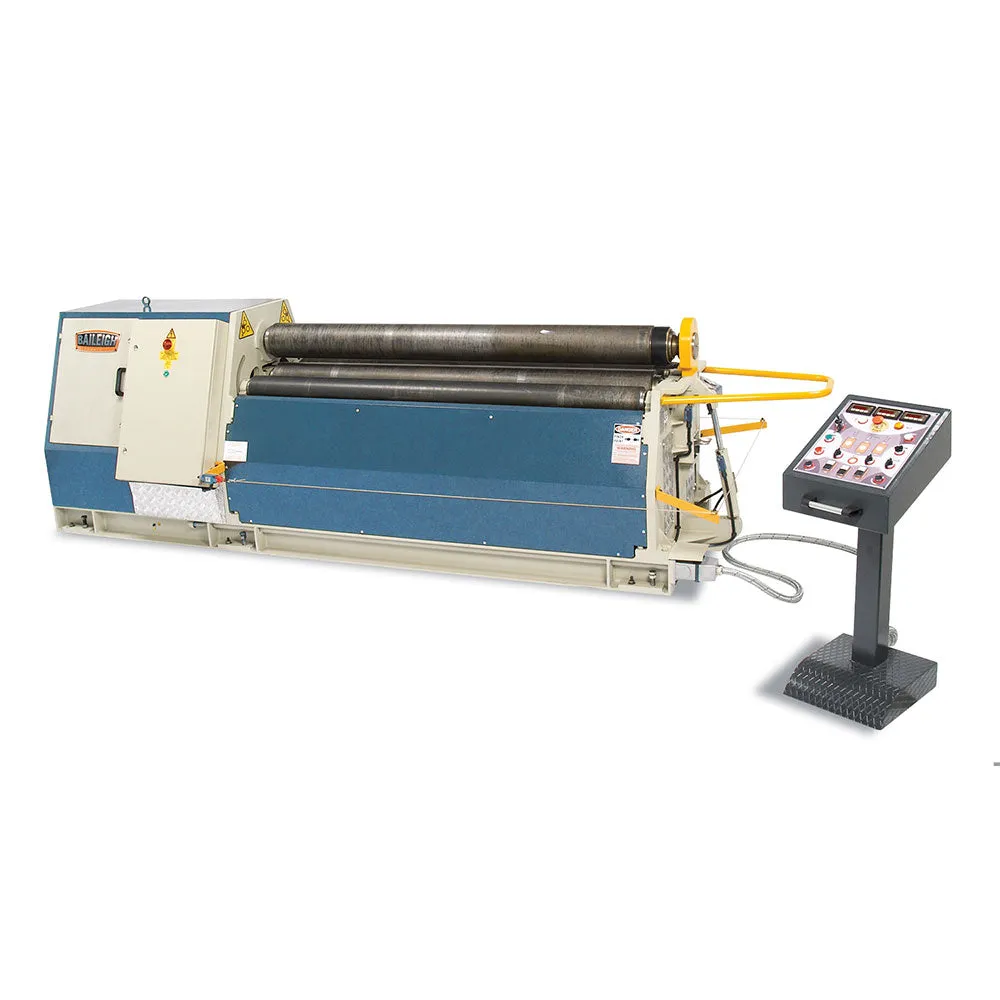

Baileigh 1006554 PR-603-4 4 Roll Plate Roll w/ 6' x 1/4" Capacity
