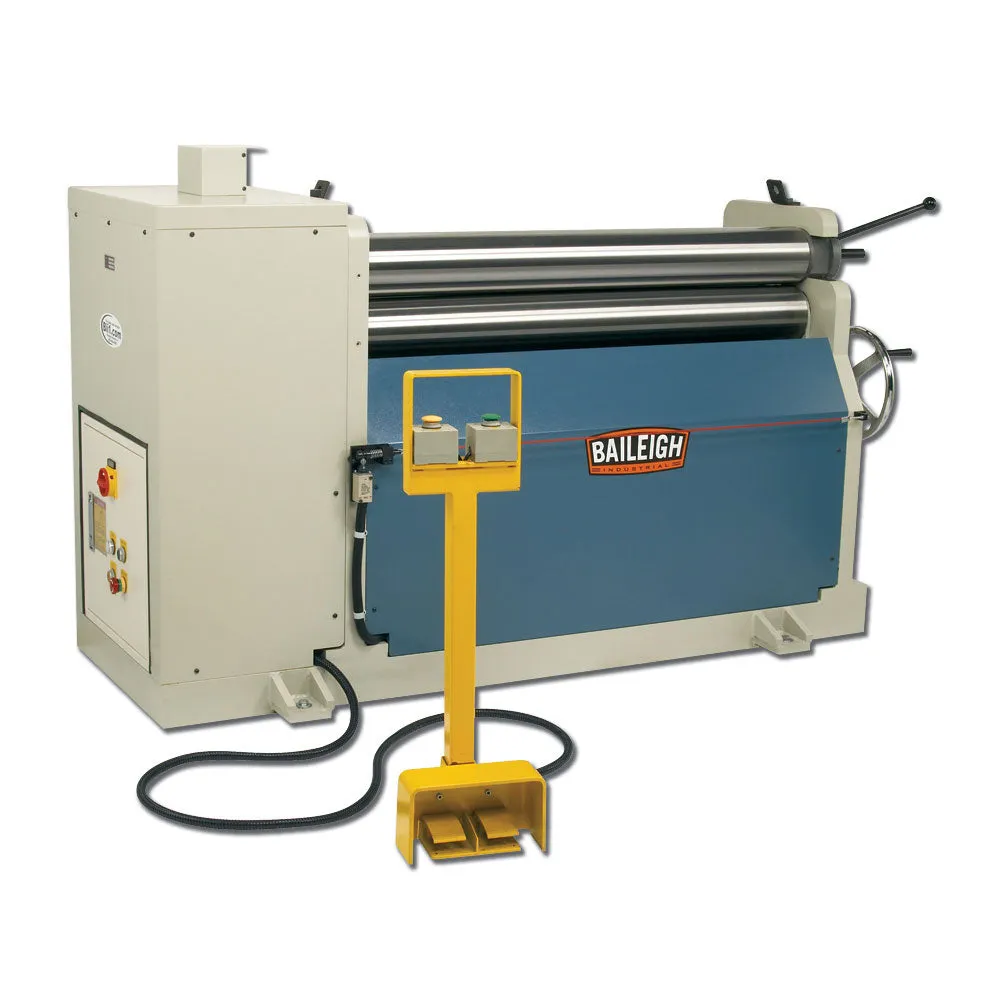

Product Details
+
Features
- 4’ forming width.
- 3 gauge (¼”) mild sheet steel capacity.
- 3 hp motor runs on 220-volt 3-phase power.

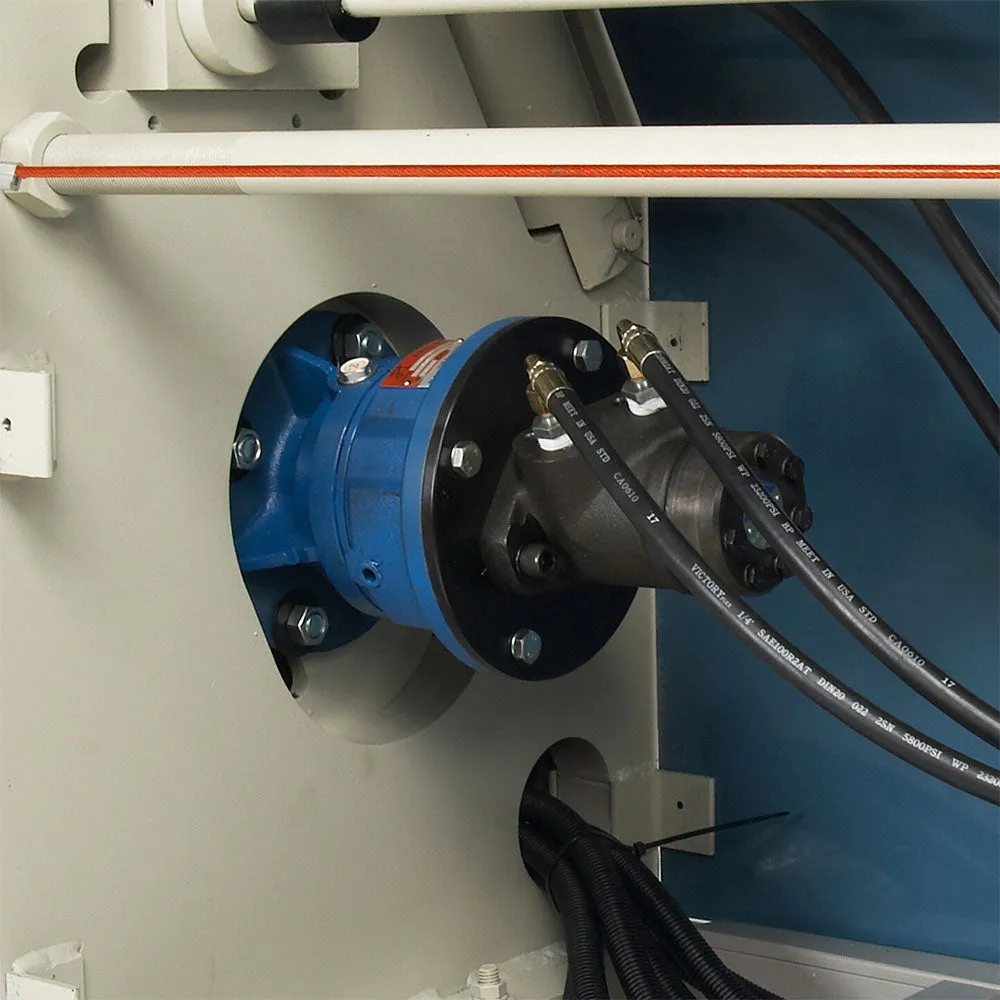

- Large planetary gearbox, connected to main motor, drives the top and bottom rolls.

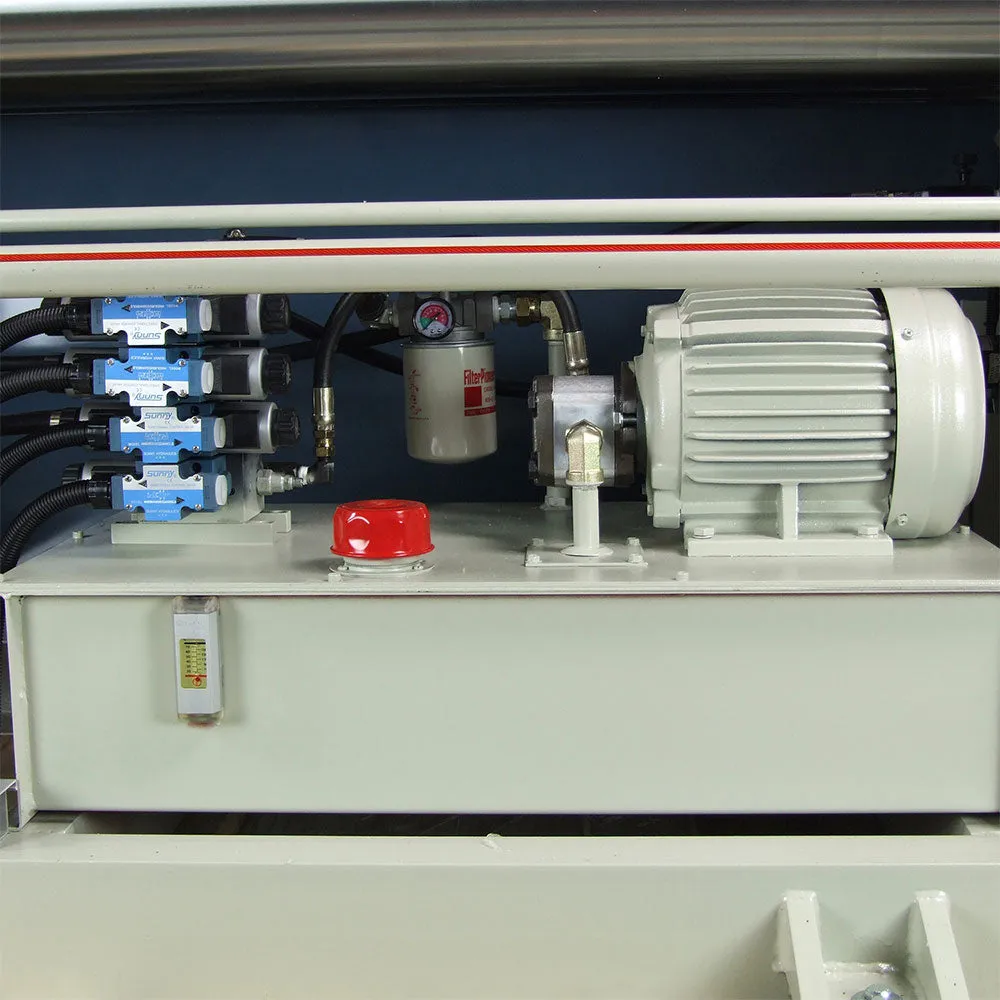

- Industrial-grade hydraulic system drives all 3 rolls.

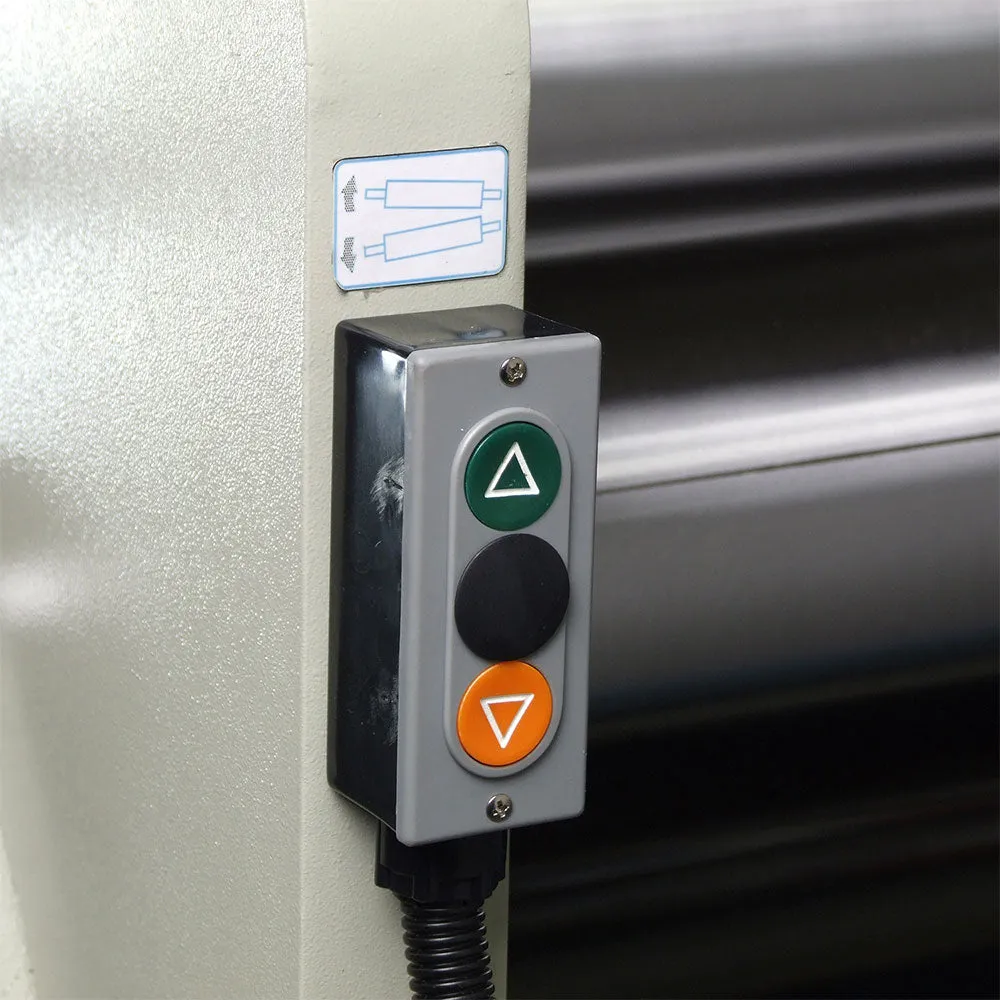

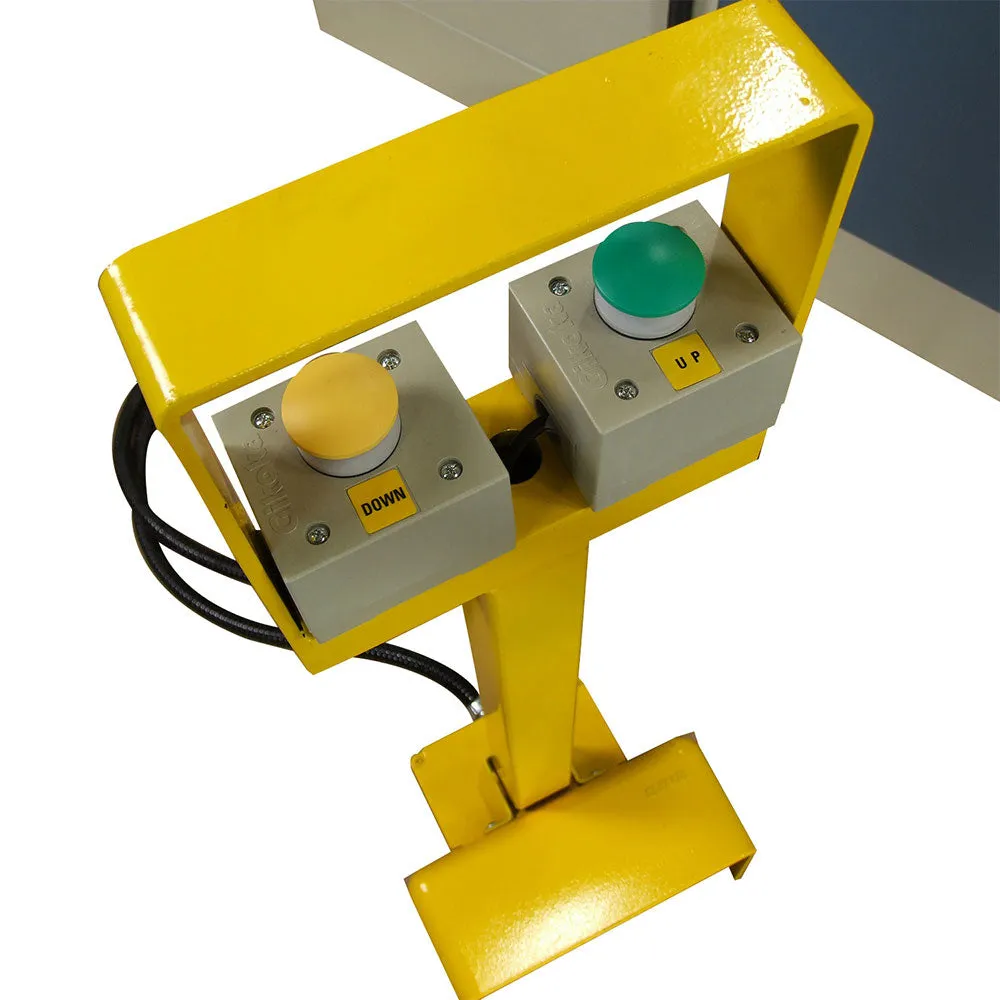

- Movable control pedestal includes foot pedals to run the rolling and buttons to move the forming roll up and down.

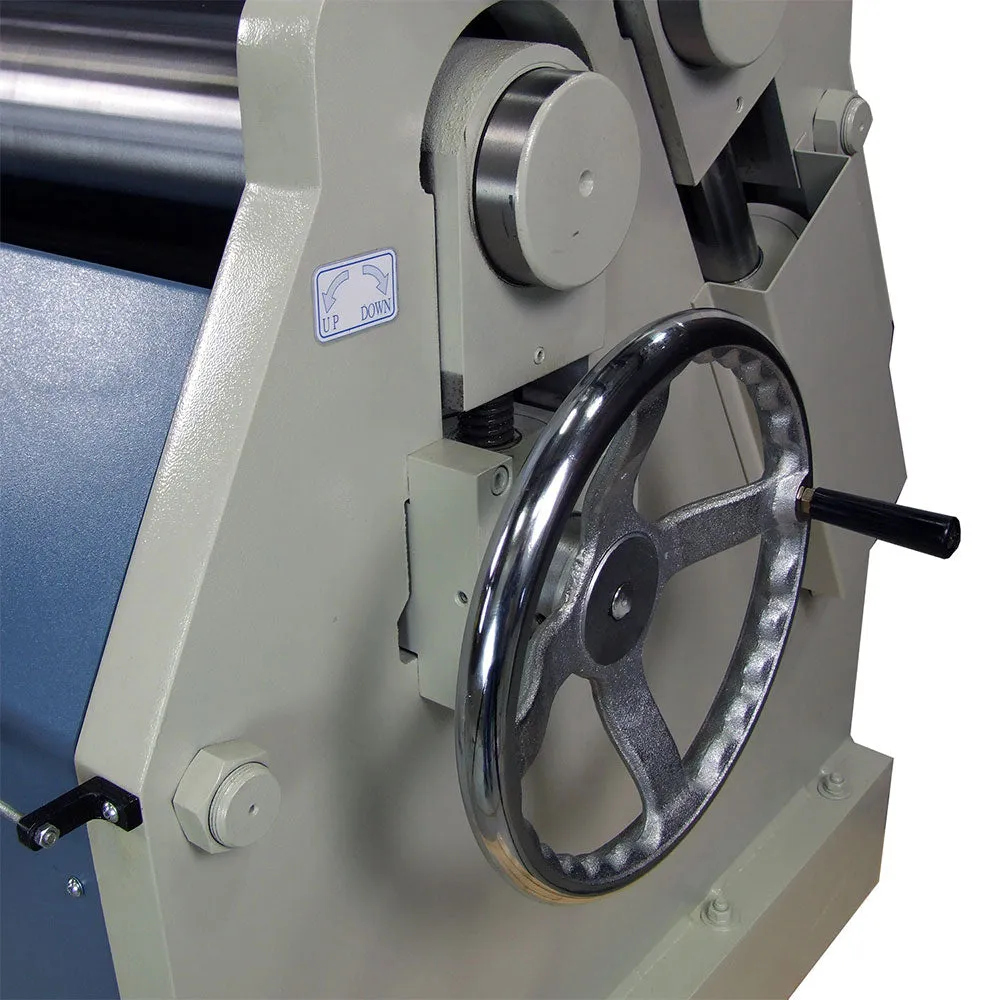

- Easy to operate: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling.
- Just flip a switch to bring the back roll up at an angle for coning.

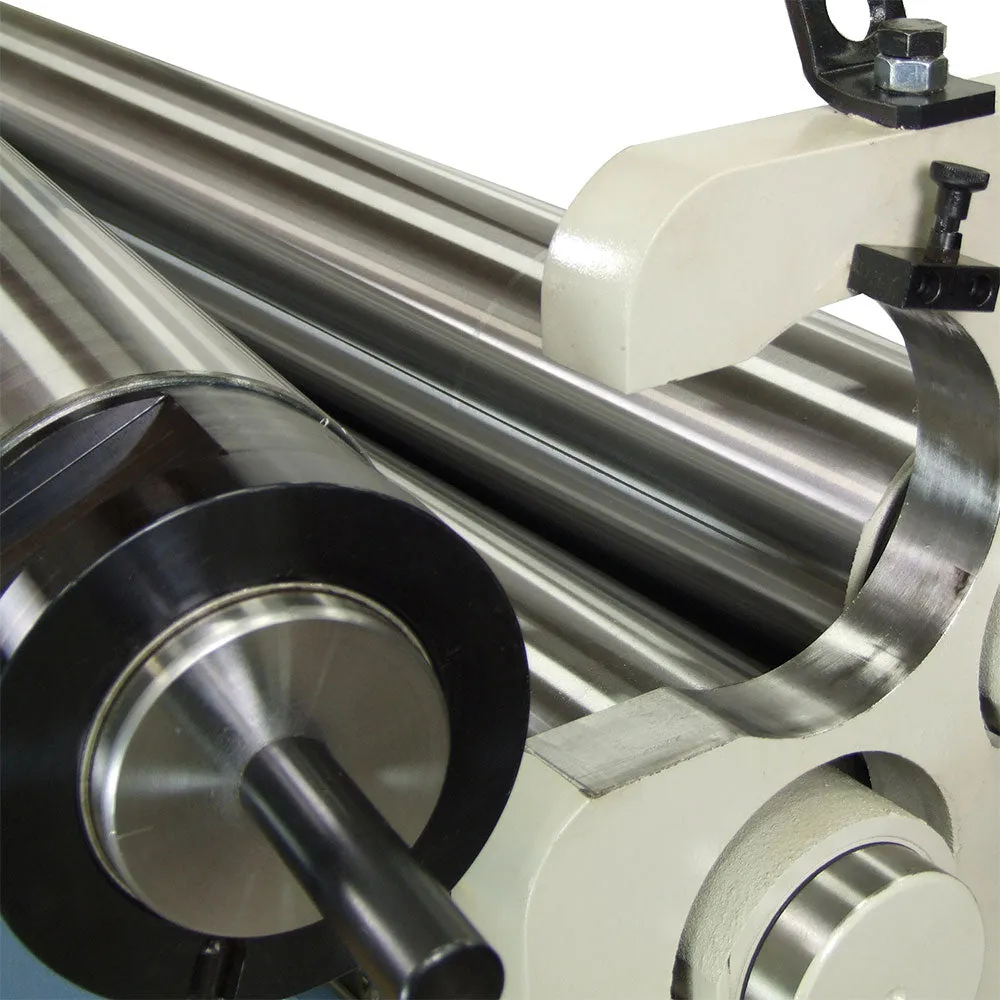

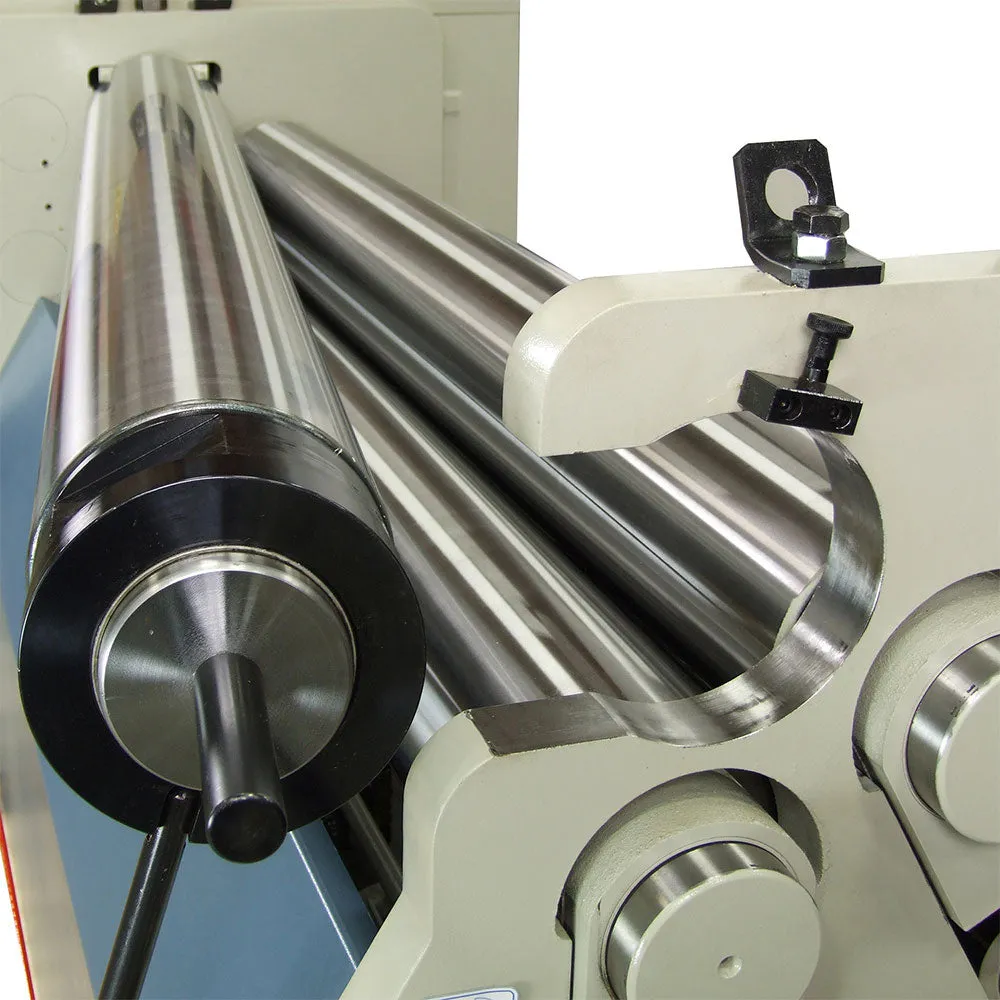

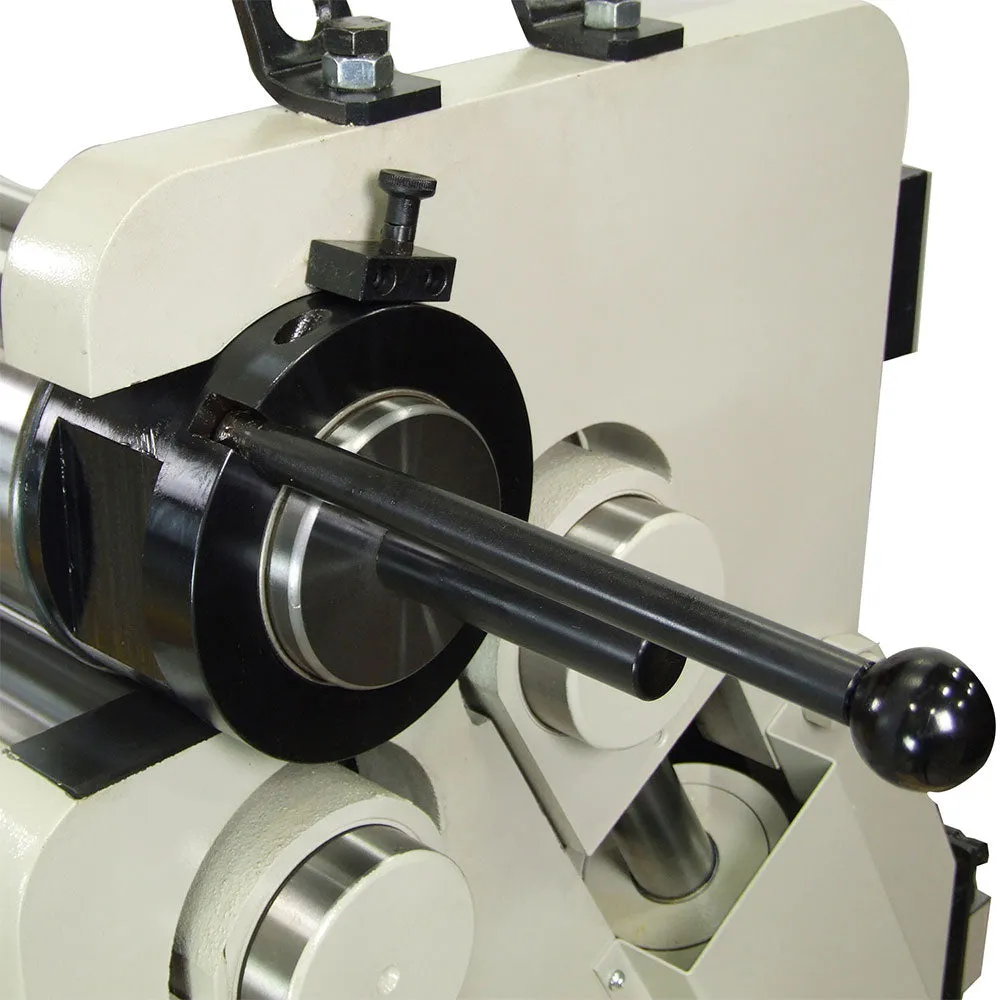

- Quick-release mechanism on the top roll makes it easy to slide off the finished work.

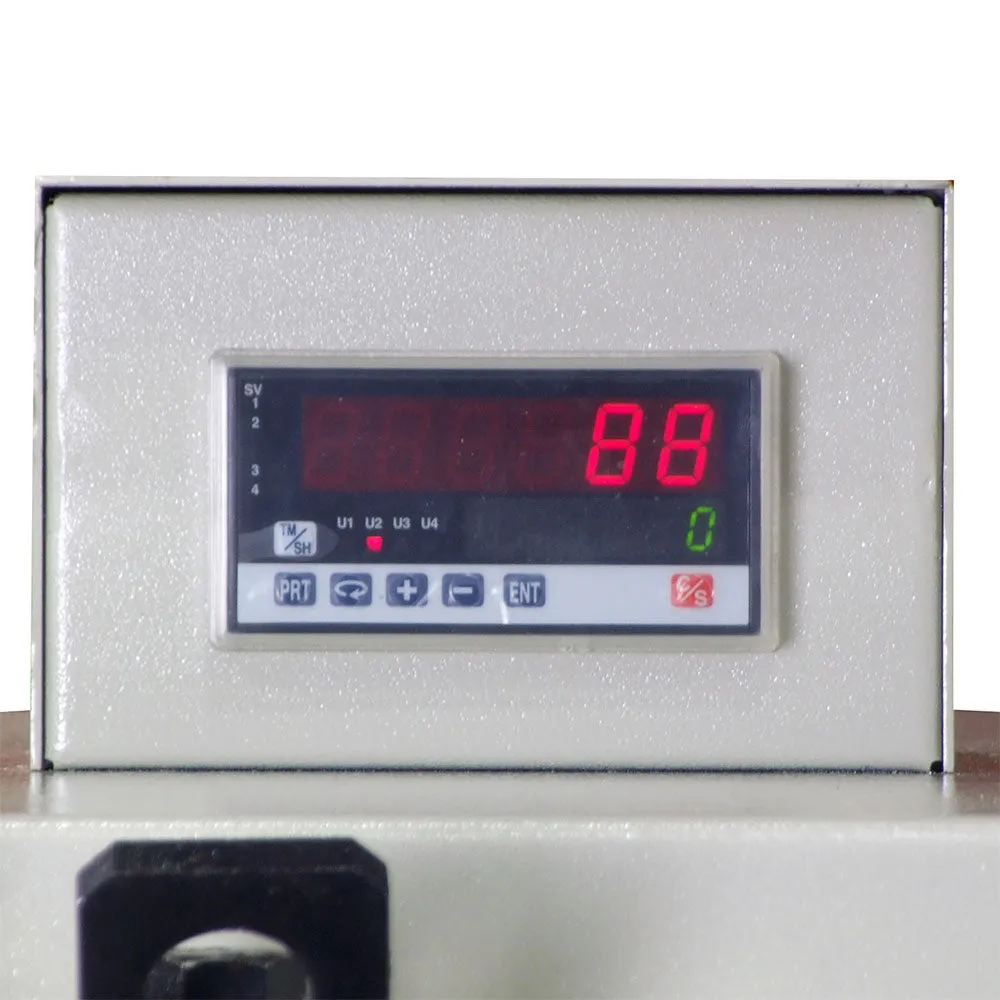

- Digital readout tracks the position of the back roll so you can make repeatable bends.
- Robust welded steel frame maintains accuracy and rigidity by keeping the rolls in alignment.
- Dual emergency stop cables are located on the front and back of the machine for your safety.
- Covered by a 1-year parts warranty.
What's in The Box
- TN-250 - Tube Notcher
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
SKU | PR-403 |
Power | 220V / 3-phase |
Motor | 3 hp |
Forming Width | 48" |
Roll Speed | 4.67 rpm. |
Upper Roll Dia. | 5.91" |
Roll Adjustment Back | Hydraulic |
Minimum Forming Dia | 8.86" |
Included Accesories | Included Accesories |
Dimensions (Inches) | 98 x 43 x 58 |
Weight | 4200 lbs |
